28/03/2024

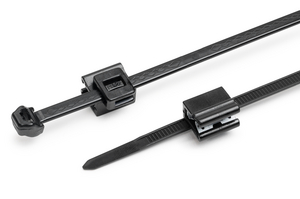

Fixing tie for edge, outside serrated, Ø4.0-45.0mm, black, 500pcs.
Art.-Nr. 150-40581 | T50ROSEC5B-PA66HS/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm

Request your individual offer now

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Anti rotation (Yes / No) YES
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method EdgeClip, sideway, assembled, 2 piece
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
No. of sides for tie attachment 4
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION T50ROSEC5B-PA66HS/PA66HIRHS-BK
Product Family EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group 2-piece fixing ties for edges
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie 200x4.6 for Edges 1-3 mm HS-black
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 4.0-45.0mm
Bundle ∅ min. 4.0mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 1.3mm
Height (H2) 15.5mm
Length (L) 200mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Weight/Unit 0.00286kg
Width (W) 4.6mm
Width (W2) 10.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026207803
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01458
Packaging 1 - Weight (kg) 1.483478kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.687824kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 173.208kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
