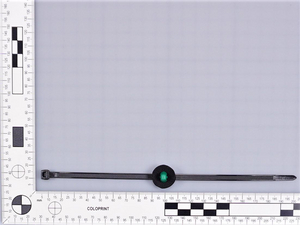

Fixing tie for hole (round), outside serrated, ⌀4.0-45.0mm, black/green, 500pcs.
Art.-Nr. 150-93129 | T50ROSSFT6.5-16-2MOD-MD-PA66HS/PA66HIRHS-BK/GN |

Copied
The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    • Seal protects against splash water
    • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Cable Tie Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Colour Black (BK), Green (GN)
    Fixation Method arrowhead
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features sealed
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSSFT6.5-16-2MOD-MD-PA66HS/PA66HIRHS-BK/GN

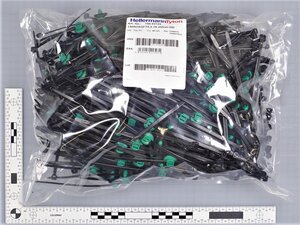

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 2-piece fixing ties with arrowhead, with disc
    Short Description fixing tie for round holes outside serrated PA66HS/HIRHS black/green
    Tie Closure plastic pawl
    Type T50ROSSFT6.5-16-2MOD-MD
    Variant Outside Serrated
    Bundle ⌀ 4.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 4.0mm
    Height (H) 1.3mm
    Length (L) 200mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001957kg
    Width (W) 4.6mm
    for Hole ⌀ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 1.8 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026217031
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.45m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0198m³
    Packaging 1 - Weight (kg) 1.007635kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.05308kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 129.624kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
