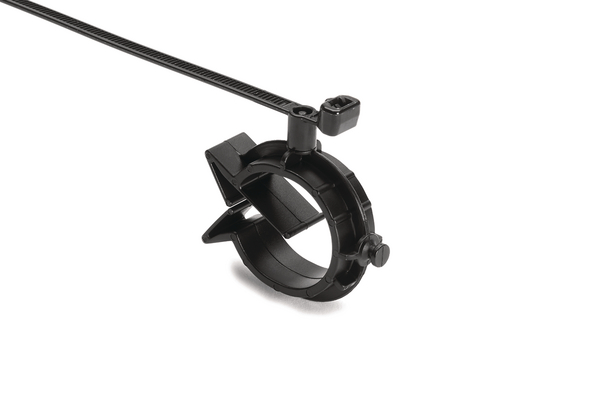

Fixing tie with pipe/tube holder, inside serrated, ⌀2.0-50.0mm, black, 500pcs.
Art.-Nr. 156-02552 | T50SMVCOC19-24.5-PA66HIRHS-BK |

Copied

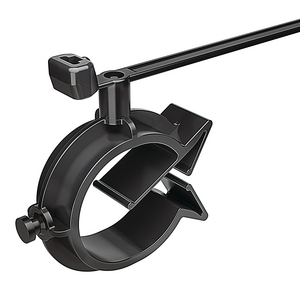

T50SMVCOC19-24.5
T50SVCOC/T50SMVCOC
T50S(M)VCOC19-24.5
T50S(M)VCOC19-24.5

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SMVCOC19-24.5-PA66HIRHS-BK
    Package Content 500pcs.

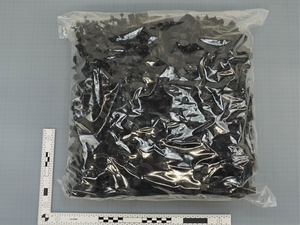

    Package Content packed in bag
    Product Family T50SMVCOC19-24,5 for Pipediameter 19.0 - 24.5 mm
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC19-24.5
    Weight/Unit 0.0064kg
    Attach to ⌀ 19.0 - 24.5
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm

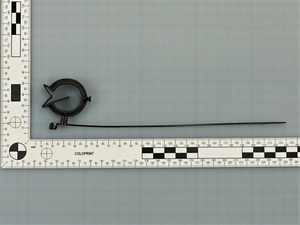

    Length (L) 210mm
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026611709
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.36m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01764m³
    Packaging 1 - Weight (kg) 3.243597kg
    Packaging 1 - Width (m) 0.35m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.794388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 186.552kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
