Mini cable channel family

Art.-Nr. 151-02587

| 120MINICHNLFT6.5-PA66HIRHSUV-BK

|

Angled channel allows specific guidance around corners or obstructions
U-Shape channel provides three sides of protection for wire or bundle
Protects against abrasion and other environmental factors
Types made from PPT20 material convince with a high operating temperature

Add to watchlist

Request quote

Downloads

More products in this product group:

Mini cable channel family

Base Data

Application	HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop.
Colour	Black (BK)
Fixation Method	Fir tree for round holes
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	120MINICHNLFT6.5-PA66HIRHSUV-BK
Package Content	856pcs.
Package Content packed in	pack
Product Family	Modular and interchangeable cable routing system
Product Group	Mini cable channel family
Type	120MINICHNLFT6.5
UV-Stabilised	Yes

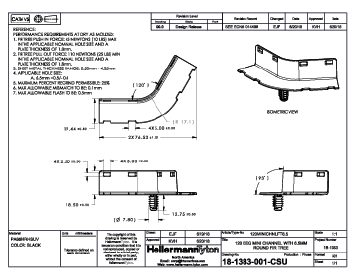

Product Dimensions

Angle	120
Length (L)	76.53mm
Panel Thickness	0.5 - 4.25mm
Width (W)	19.44mm
for Hole ⌀ (FH)	6.1 - 7.0 mm
for Panel Thickness min - max	0.5 - 4.3 mm

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026715186
Packaging 1 - Qty	856
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20479m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0332m³
Packaging 3 - Width (m)	0.314325m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
