90MINICHNL2-PPTD20-BK

Art.-Nr. 151-03087

| 90MINICHNL2-PPTD20-BK

|

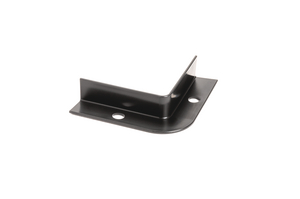

Angled mini channel provides safe routing of wires around corners or obstructions

Angled channel allows specific guidance around corners or obstructions.
U-Shape channel provides three sides of protection for wire or bundle.
High-quality polypropylene material with high heat resistance.
Protects against abrasion and other environmental factors.
Mounting holes for cable ties allow for easy bundling.

Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions.

Package size

50 pcs.

1600 pcs.

Add to watchlist

Request quote

Downloads

More products in this product group:

Mini cable channel family

Base Data

Application	HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop.
Colour	Black (BK)
Material	Polypropylene 20% Talkum (PPTD20)
PART DESCRIPTION	90MINICHNL2-PPTD20-BK
Package Content	50pcs.
Package Content packed in	bag
Type	90MINICHNL2
UV-Stabilised	No

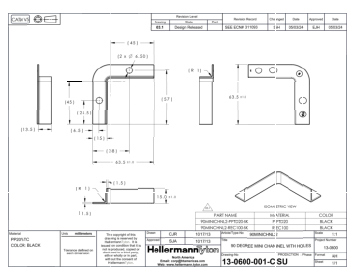

Product Dimensions

Angle	90
Height (H)	15.0mm
Length (L)	63.5mm
Length (L2)	57.0mm
Width (W)	15.0mm
for Hole ⌀ (FH)	6.35 - 6.65 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +65 °C
ROHS compliant	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions.
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026631899
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Width (m)	0.2921m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39131600
