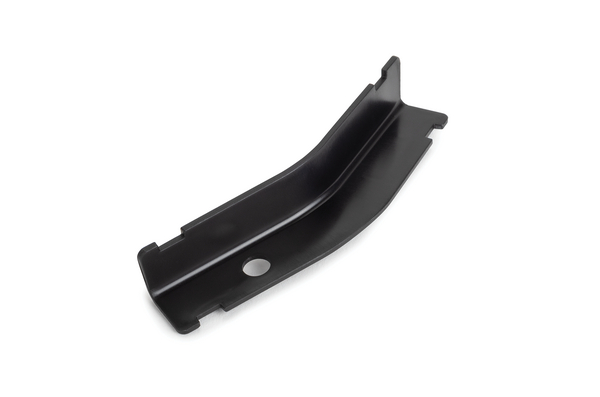

Mini cable channel family
Art.-Nr. 151-03263
| 60MINICHNL-PPTD20-BK
|
Copied
- Angled channel allows specific guidance around corners or obstructions
- U-Shape channel provides three sides of protection for wire or bundle
- Protects against abrasion and other environmental factors
- Types made from PPT20 material convince with a high operating temperature
Request quote
More products in this product group:
| Application | HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop. |
| Colour | Black (BK) |
| Material | Polypropylene 20% Talkum (PPTD20) |
| PART DESCRIPTION | 60MINICHNL-PPTD20-BK |
| Package Content | 500pcs. |
| Package Content packed in | box |
| Product Family | Modular and interchangeable cable routing system |
| Product Group | Mini cable channel family |
| Type | 60MINICHNL |
| Weight/Unit | 0.004536kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026647173 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 2.268001kg |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 2.888001kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 79.76kg |
| Packaging 4 - Width (m) | 0.8m |
