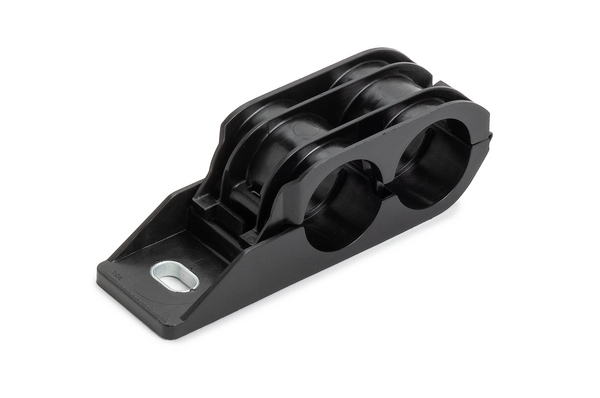

Cable clip for hole (round)/for stud, ⌀M6, Dmax=24.0mm

Art.-Nr. 151-04378

| DHVC24OVALCL-PA66HIRHSUV-BK

|

Add to watchlist

Request quote

Downloads

More products in this product group:

Fixing elements for tubes and harnesses

Base Data

Colour	Black (BK)
Fixation Method	Stud Mount
Key product features	vibration absorbing, sealed, for multiple routing
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	DHVC24OVALCL-PA66HIRHSUV-BK
Package Content	250pcs.
Package Content packed in	bag
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	DHVC24OVALCL
UV-Stabilised	Yes

Product Dimensions

Bundle ⌀	24.0mm
Bundle ⌀ max.	24.0mm
Height (H)	28.15mm
Height (H2)	32.0mm
Length (L)	174.7mm
Length (L2)	100.5mm
Width (W)	30.5mm
for Hole ⌀ (FH)	M6

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026756240
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Width (m)	0.2921m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121705
