Cable clip for edge, T=3.0 - 6.0mm

Art.-Nr. 151-03110

| EC41-PA66HIR-BK

|

EdgeClip cable and tube clips are suitable for the low-vibration routing of cables and tubes with larger bundle diameters.

This product is not available anymore.

Please contact our sales team.

Clips to be pushed onto an edge
Low-vibration routing of bigger bundle diameters
To be closed single handed, a snap can be felt
Bundels can be released at any time
Covers are releasable for maintenance or post-installations
EC27 and HCEC3.0SP-C: fixing element enables use of smaller bundle diameters
EC41: for parallel guidance of two bundles
HCEC3.0TPS: specially rounded surface to minimise risk of injury

Add to watchlist

Request quote

Downloads

More products in this product group:

Fixing Elements for Tubes and Harnesses, for Edges

Base Data

Colour	Black (BK)
Fixation Method	Edge Clip
Material	Polyamide 6.6, high impact modified (PA66HIR)
PART DESCRIPTION	EC41-PA66HIR-BK
Package Content	100pcs.
Package Content packed in	bag
Product Family	EdgeClip EC41
Product Group	Fixing Elements for Tubes and Harnesses, for Edges
Type	EC41

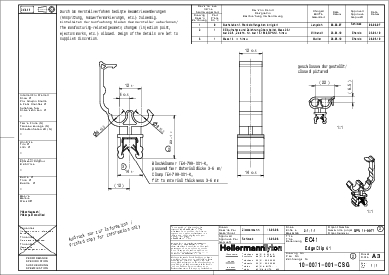

Product Dimensions

Attach to ⌀	2 x 8.0 mm
Height (H)	23.1mm
Panel Thickness	3.0 - 6.0mm
Width (W)	14.0mm
for Panel Thickness min - max	3 - 6 mm

Specifications

Flammability	UL 94 HB
Operating Temperature	-40 °C to +80 °C, (+105 °C, 500 h)

Logistics and Packaging

Country of Origin	BR
GTIN-13 / EAN	7890176090140

More Information

ETIM 7.0 Key	EC000449
ETIM 8.0 Key	EC000449
ETIM 9.0 Key	EC000449
UNSPSC Key	31162305
