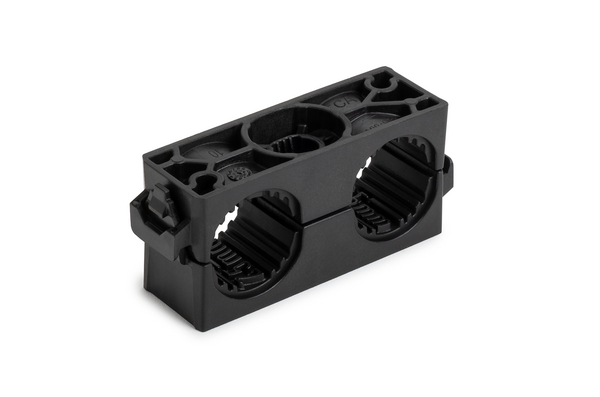

Cable clip for hole (round)/for stud, ⌀M8, Dmin=21.5mm, Dmax=22.5mm

Art.-Nr. 151-04260

| HDC22X2BASE-PA66GF15/TPE-BK

|

Double clip in PA46 with anti-rotation pin recommended for corrugated tubing.

Add to watchlist

Request quote

Downloads

More products in this product group:

Fixing elements for tubes and harnesses

Base Data

Colour	Black (BK)
Fixation Method	Stud Mount
Key product features	vibration absorbing, sealed, for multiple routing
Material	Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
No. of bundles	2
PART DESCRIPTION	HDC22X2BASE-PA66GF15/TPE-BK
Package Content	350pcs.
Package Content packed in	carton
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	HDC22X2BASE
UV-Stabilised	No

Product Dimensions

⌀ max. 1. loop	22.5mm
⌀ max. 2. loops	22.5mm
Bundle ⌀	21.5-22.5mm
Bundle ⌀ max.	22.5mm
Bundle ⌀ min.	21.5mm
Height (H)	38.0mm
Height (H2)	19.0mm
Length (L)	88.5mm
Length (L2)	44.0mm
Width (W)	26.0mm
for Hole ⌀ (FH)	M8

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +125 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026745756
Packaging 1 - Qty	350
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20479m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0332m³
Packaging 3 - Width (m)	0.314325m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
