31/10/2025

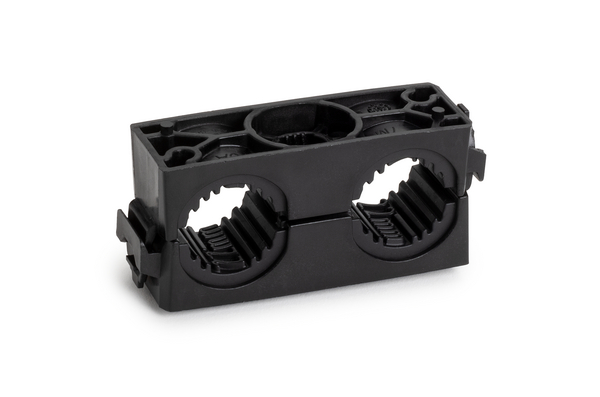

Cable clip for hole (round)/for stud, ⌀M8, Dmin=24.5mm, Dmax=25.5mm
Art.-Nr. 151-03995 | HDC25x2-PA66GF15/TPE-BK |

Copied
Double clip in PA46 with anti-rotation pin recommended for corrugated tubing.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Stud Mount
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION HDC25x2-PA66GF15/TPE-BK
    Package Content 350pcs.
    Package Content packed in carton
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type HDC25x2
    UV-Stabilised No
    ⌀ max. 1. loop 25.5mm
    ⌀ max. 2. loops 25.5mm
    Bundle ⌀ 24.5-25.5mm
    Bundle ⌀ max. 25.5mm
    Bundle ⌀ min. 24.5mm
    Height (H) 38.0mm
    Height (H2) 19.0mm
    Length (L) 88.5mm
    Length (L2) 44.0mm
    Width (W) 26.0mm
    for Hole ⌀ (FH) M8
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026714004
    Packaging 1 - Qty 350
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
