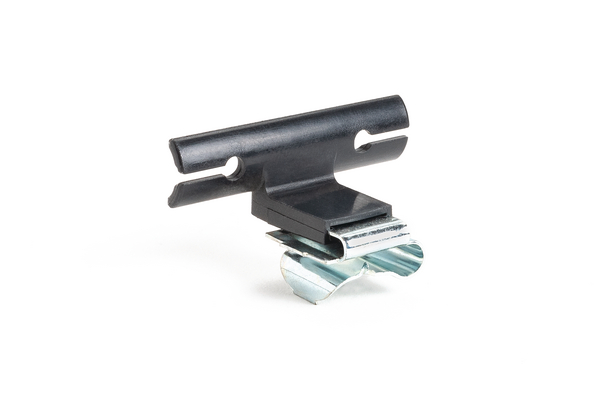

Bundling clip, L=36.2mm, SO=9.3mm, black, 4000pcs.
Art.-Nr. 133-04243 | TEC74-PA66HIRHSUV/MET-BK |

Copied
Tape clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Metal (MET)
    PART DESCRIPTION TEC74-PA66HIRHSUV/MET-BK
    Pack Cont. 4000pcs.
    Package Content packed in pack
    Type TEC74
    ⌀ D 0.16"
    Bundle ⌀ 7.8mm
    Bundle ⌀ max. 7.8mm
    Bundling Bar Length 36.2mm
    Diameter (D) 4.0mm
    Height (H) 10.9mm
    Length (L) 14.3mm
    Length (L2) 36.2mm
    Offset Length 9.3mm
    Panel Thickness max. 1.4 - 2.8mm
    Width (W) 16mm
    Width (W2) 15.1mm
    for Panel Thickness min - max 1.4 - 2.8 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026715032
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
