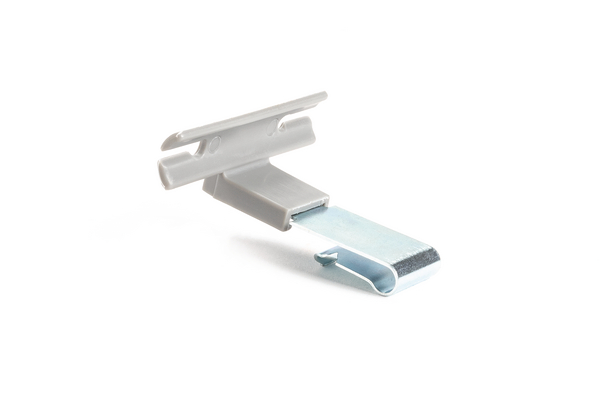

Bundling clip, L=36.2mm, SO=6.6mm, grey, 3000pcs.
Art.-Nr. 133-04486 | TEC93-PA66HIRHS/MET-GY |

Copied
Tape bar provides a convenient surface for securing a bundle using a cable tie or tape.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
    Colour Grey (GY)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Metal (MET)
    PART DESCRIPTION TEC93-PA66HIRHS/MET-GY
    Package Content 3000pcs.
    Package Content packed in pack
    Product Family for panel thicknesses of 1.0 - 4.0 mm
    Product Group Bundling clips with edge clips
    Type TEC93
    UV-Stabilised No
    Weight/Unit 0.003kg
    ⌀ D 0.16"
    Bundle ⌀ 7.8mm
    Bundle ⌀ max. 7.8mm
    Bundling Bar Length 36.2mm
    Diameter (D) 4.0mm
    Height (H) 4.8mm
    Length (L) 19.7mm
    Length (L2) 36.2mm
    Offset Length 6.6mm
    Panel Thickness max. 2.8 - 3.1mm
    Width (W) 11.1mm
    Width (W2) 15.2mm
    for Panel Thickness min - max 2.8 - 3.1 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026622316
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.56m
    Packaging 1 - Qty 3000
    Packaging 1 - Type pack
    Packaging 1 - Volume (m³) 0.024528m³
    Packaging 1 - Weight (kg) 9.000001kg
    Packaging 1 - Width (m) 0.365m
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Weight (kg) 10.110001kg
    Packaging 3 - Width (m) 0.34925m
    Packaging 4 - Height (m) 1.182m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.135m³
    Packaging 4 - Weight (kg) 263.64kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
