154-00100

Sustainable
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Base Data

Colour Natural (NA)
Fixation Method Screw Mount
For Ties T18 - T50
Material Polyamide 6.6 (PA66)
Mounting Screw Type #10 (M5) Screw
No. of bundles 1
Package Content 100pcs.
Package Content packed in bag

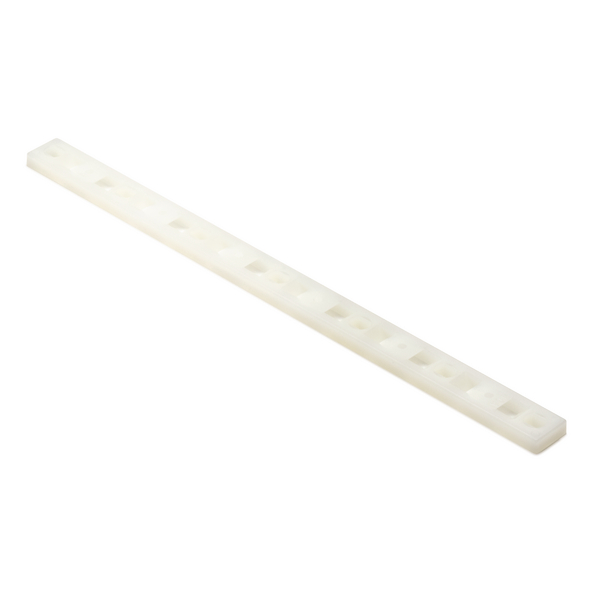

PART DESCRIPTION MP1M5-PA66-NA
Product Family MP-Series for parallel bundling
Product Group Mounting plates for screw fixing
UV-Stabilised No

Product Dimensions

Fixing Hole Centres (F) 31.8mm
Fixing Hole Centres (F) 1.25"
for Hole ⌀ (FH) 5.1 mm
Height (H) 3.2mm
Hole Size (HS) 7.6mm
Length (L) 44.4mm
Strap Width max. (G) 5.2mm
Strap Width max. (G) 0.2"
Width (W) 12.7mm

Specifications

CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Specifications

Logistics and Packaging

Country of Origin FR
GTIN-13 / EAN 5022660313066

More Information

ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
