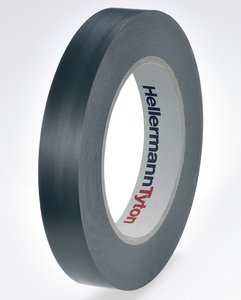

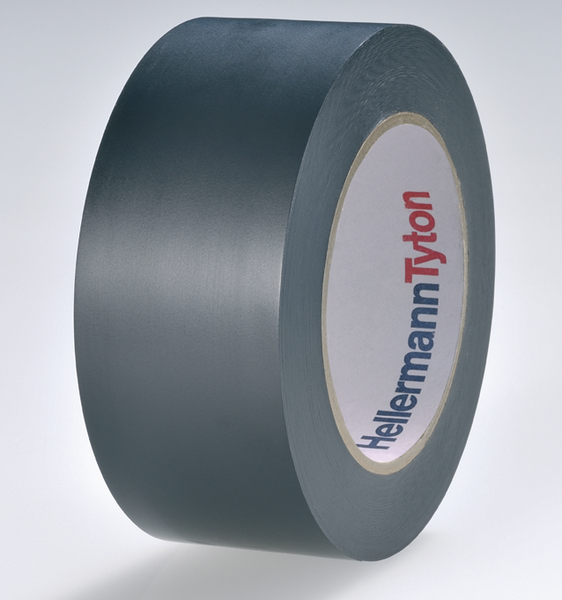

Electrical tape, L=33m, W=25mm, T=0.23mm, black
Art.-Nr. 710-00402
| HTAPE-FLEX23-25x33-PVC-BK
|
Copied
This product is not available anymore.
- Special high level adhesive
- Flame retardant
- Suitable for mechanical and electrical applications up to 600 volts
- Additional thickness for quicker build-up and added abrasion resistance
Request quote
More products in this product group:
| Application |
Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Black (BK) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX23-25x33-PVC-BK |
| Package Content | 1pc. |
| Package Content packed in | reel |
| Product Family | HelaTape Flex 23 - Insulating Tape for Higher Mechanical Requirements |
| Product Group | HelaTape Flex - Vinyl Electrical Tapes |
| Short Description | PVC Electrical Insulation Tape 25mm x 33m black |
| Type | HTAPE-FLEX23-25x33 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.2kg |
| Adhesion to Backing | 3.8N/10 mm |
| Adhesion to Steel | 4.0N/10 mm |
| Breaking Strength | 45N/10 mm |
| Dielectric Strength | 48kV/mm |
| ELV compliant (Article 4 - 2) | Yes |
| Elongation at break (min.) | 240% |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | +105 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | VDE |
| Suitable for high voltage (Yes/No) | No |
