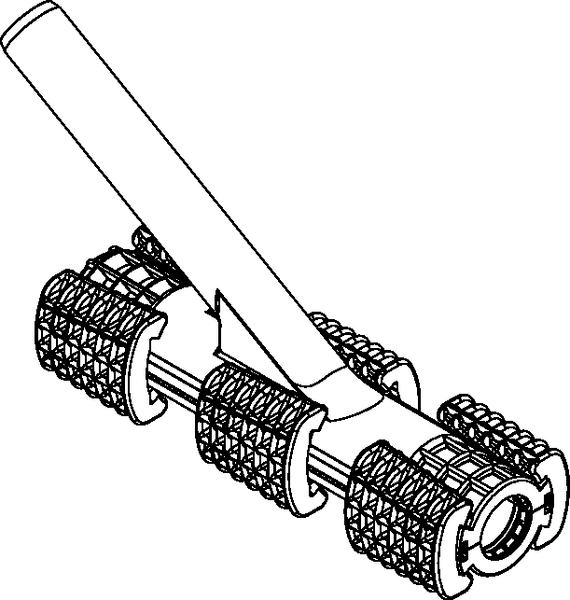

Split duct tees.
Art.-Nr. 874-00220 | HRMA_32/32-30°-BK

Copied
  • gas- and water-tight up to 0.5 bar
  • no interference with the other speedpipe or cables or the ongoing data transmissions during the interventions

Request your individual offer now

Application Apertures of existing duct systems for branching off standard cables or internal speedpipe are closed safely and simply. Thus no manhole is necessary any more for branching off from a duct system. Install the branches wherever you want to minimize or optimize your routes. Due to the mechanical protection of the branch point you receive optimum results at blowing in fibre optic cables into the internal speedpipe even after decades.
Colour Black (BK)
PART DESCRIPTION HRMA_32/32-30°-BK
Package Content 6pcs.
Package Content packed in carton
Product Family HRMA 32 / 32-30°
Product Group Split duct tees.
Type HRMA_32/32-30°
Weight/Unit 0.550kg
⌀ (D2) 32mm
Angle 30
Diameter (D) 32mm
Height (H) 86mm
Length (L) 314mm
Width (W) 167mm
Country of Origin DE
GTIN-13 / EAN 4031051421748
Packaging 1 - Height (m) 0.280m
Packaging 1 - Length (m) 0.390m
Packaging 1 - Qty 6
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.0273
Packaging 1 - Weight (kg) 3.630kg
Packaging 1 - Width (m) 0.250m
Packaging 2 - Height (m) 0.990m
Packaging 2 - Length (m) 1.2m
Packaging 2 - Qty 162
Packaging 2 - Type pallet
Packaging 2 - Volume (m³) 0.9504
Packaging 2 - Weight (kg) 118kg
Packaging 2 - Width (m) 0.80m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
