11/05/2025

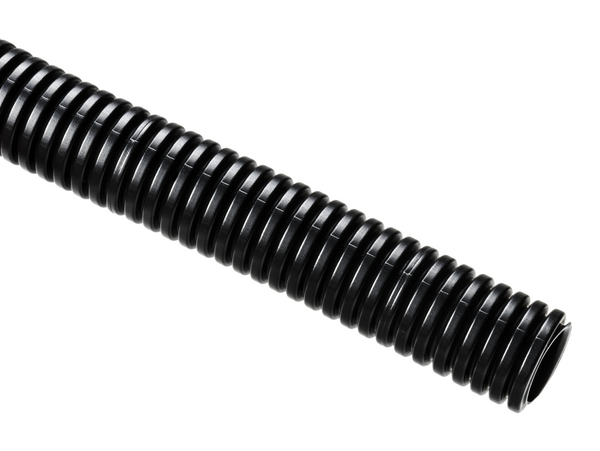

HG-HISL0500-PA12-BK
Art.-Nr. 166-90265 | HG-HISL0500-PA12-BK |

Copied

    This product is not available anymore.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 12 (PA12)
    PART DESCRIPTION HG-HISL0500-PA12-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Pitch Type fine
    Type HG-HISL0500
    Bending Radius min. (BR) 1.38"
    Bending Radius min. (R) 35mm
    Inner Diameter D (Imperial) 0.66"
    Inside ⌀ (ID) 16.7mm
    Length (L) 30.5m
    NW ⌀ 17mm
    Nominal ⌀ 0.5"
    Nominal ⌀ 21mm
    Outside ⌀ (OD) 21.2mm
    Outside ⌀ (OD) 0.84"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free Yes
    Operating Temperature -50 °C to +110 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin GB
    GTIN-13 / EAN 4031026485447
    UNSPSC Key 39131601
    Convoluted tubing Convoluted tubing

    Corrugated tubing

    Whether thin- or thick-walled, enclosed or slit: Find now the right corrugated tubing, including matching fitting and holder.
