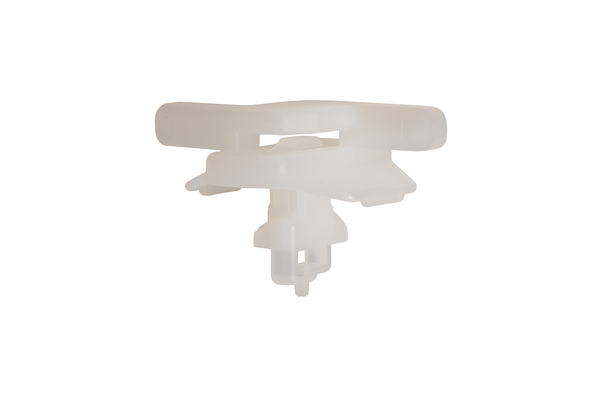

Aluminium frame mount, W=6.0mm, T=2.5 - 3.0mm, natural, 100pcs.
Art.-No. 151-01611
| AFLM30-1-PA66-NA
|
Copied
- AFLM can be easily attached to aluminum frames, which are indispensable for equipment units used at production sites.
- AFLM offers exceptional versatility as it can fit into frames from the major aluminum frame manufacturers.
- Can be attached to an aluminum frame in just one second. Simply rotate to lock in place.
More products in this product group:
| Colour | Natural (NA) |
| Fixation Method | Profile rail |
| For Ties | T18 - T50 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | AFLM30-1-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | AFLM series |
| Product Group | Fixing mount for aluminum frame |
| Type | AFLM30-1 |
| Typical Application | For Aluminum Frame |
| UV-Stabilised | No |
| For Pipe Size/Type |
Applicable Aluminum Frames: 30mm square type Panel Thickness: 2～2.2mm Slot Width:8mm |
| Height (H) | 17.2mm |
| Length (L) | 26.0mm |
| Length (L2) | 9.9mm |
| Panel Thickness | 0.10 - 0.12" |
| Panel Thickness | 2.5 - 3.0mm |
| Panel Thickness max. (imperial) | 0.12" |
| Panel Thickness min. (imperial) | 0.10" |
| Width (W) | 18mm |
| Width (W2) | 0.24" |
| Width (W2) | 6mm |
| for Panel Thickness min - max | 2.5 - 3 mm |
