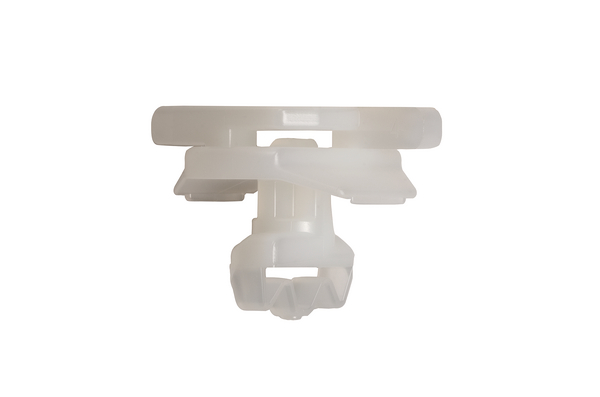

Aluminium frame mount, W=7.9mm, T=4.0 - 4.8mm, natural, 100pcs.
Art.-No. 151-01612
| AFLM40-1-PA66-NA
|
Copied
- AFLM can be easily attached to aluminum frames, which are indispensable for equipment units used at production sites.
- AFLM offers exceptional versatility as it can fit into frames from the major aluminum frame manufacturers.
- Can be attached to an aluminum frame in just one second. Simply rotate to lock in place.
More products in this product group:
| Application | Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles. |
| Colour | Natural (NA) |
| Fixation Method | Profile rail |
| For Ties | T18 - T50 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | AFLM40-1-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | AFLM series |
| Product Group | Fixing mount for aluminum frame |
| Type | AFLM40-1 |
| UV-Stabilised | No |
| For Pipe Size/Type |
Applicable Aluminum Frames: 40mm/45mm square type Panel Thickness: 5.5～6mm Slot Width:10mm |
| Height (H) | 20.2mm |
| Length (L) | 28.0mm |
| Length (L2) | 13.5mm |
| Panel Thickness | 0.16 - 0.19" |
| Panel Thickness max. | 4.0 - 4.8mm |
| Panel Thickness max. (imperial) | 0.19" |
| Panel Thickness min. (imperial) | 0.16" |
| Width (W) | 21mm |
| Width (W2) | 7.9mm |
| for Panel Thickness min - max | 4 - 4.8 mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V2 |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
