Fixing tie with pipe/tube holder, ⌀4-45mm, black, 250pcs.
Art.-No. 156-00574 | T50RIAHC1T-PA66HS/PA66HIRHS-BK |

2-piece fixing tie, 360° rotatable, a cable tie in combination with an AHC to route and fix harnesses.

T120R cable tie assembled with an IAHC.

T120RIAHC( )TCR

T120RIAHC( )TCR

More products in this product group:

2-piece fixing ties with automatic harness clip >

Base Data

Application	Offering a simple and secure method of attaching cables together. Originally designed for the automotive industry, these products are used in a wide range of applications.
Colour	Black (BK)
Identification Plate Position	none
Key product features	for multiple routing, rotatable
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Min.Tensile Strength	225N
PART DESCRIPTION	T50RIAHC1T-PA66HS/PA66HIRHS-BK
Pack Content	250pcs.
Package Content packed in	bag
Product Family	IAHC-Series
Product Group	2-piece fixing ties with automatic harness clip
Type	T50RIAHC1T

Product Dimensions

Attach to ⌀	3-13
Bundle ⌀ max.	45mm
Bundle ⌀ min.	4mm
Length (L)	200mm
Thickness (T)	1.2mm
Width (W)	4.6mm

Downloads

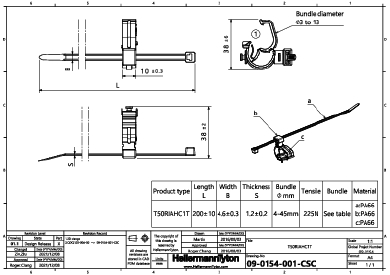

Technical drawing

다운로드

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026329680

More Information

UNSPSC Key

39121703
