Fixing tie with pipe/tube holder, Ø4-50.0mm, black, 200pcs.
Art.-No. 156-00850 | T50RIAHC3T-PA66HS/PA66HIRHS-BK | 세부

2-piece fixing tie, 360° rotatable, a cable tie in combination with an AHC to route and fix harnesses.

More products in this product group:

2-piece fixing ties with automatic harness clip >

Base Data

Application	Offering a simple and secure method of attaching cables together. Originally designed for the automotive industry, these products are used in a wide range of applications.
Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour	Black (BK)
Identification Plate Position	none
Key product features	rotatable
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Content	200pcs.
Package Content packed in	bag
PART DESCRIPTION	T50RIAHC3T-PA66HS/PA66HIRHS-BK
Product Family	IAHC-Series
Product Group	2-piece fixing ties with automatic harness clip

Product Dimensions

Attach to Ø	19.0 - 28.0mm
Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	4mm
Length (L)	202mm
Min.Tensile Strength	225N
Thickness (T)	1.2mm
Width (W)	4.6mm

Downloads

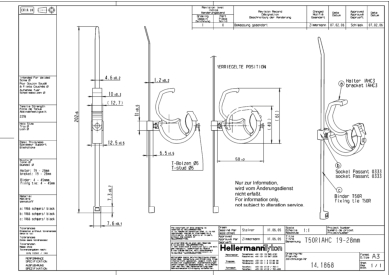

Technical drawing 14.1868

다운로드

Specifications

Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026436593

More Information

UNSPSC Key

39121717
