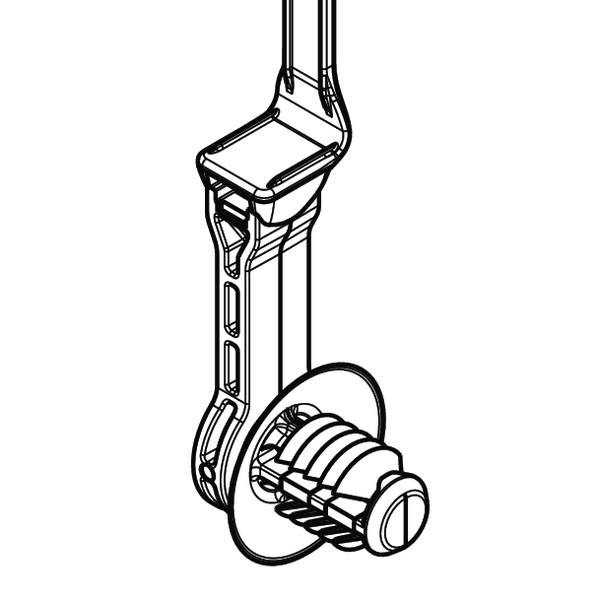

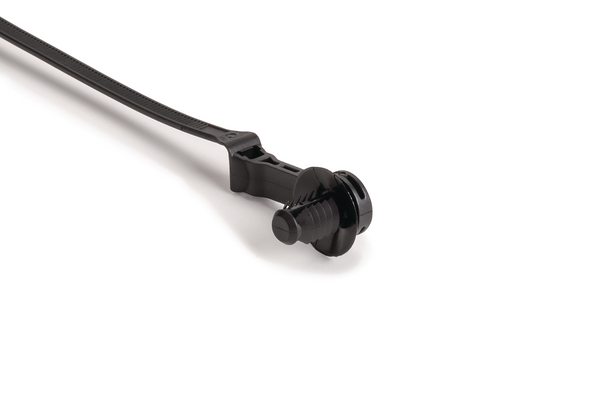

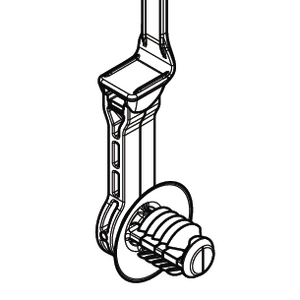

Fixing tie for hole (round), outside serrated, ⌀2.0-50.0mm, black, 3000
Art.-No. 157-00231
| T50ROSFT8M10SO25R-PA66HIRHSUV-BK
|
Copied
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
More products in this product group:
1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50ROSFT8M10SO25R-PA66HIRHSUV-BK |
| Pack Content | 3000 |
| Package Content packed in | carton |
| Product Family | With offset 12.5 and 25.0 mm |
| Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes |
| Releasable Closure (Yes/No) | No |
| Type | T50ROSFT8M10SO25R |
| UV-Stabilised | Yes |
| Variant | Outside Serrated |
| Bundle ⌀ max. | 50.0mm |
| Bundle ⌀ min. | 2.0mm |
| Disc ⌀ | 0.75" |
| Disc ⌀ | 19.0mm |
| Height (H) | 5.8mm |
| Hole Depth | 0.6mm |
| Hole Depth | 5.5mm |
| Length (L) | 238.0mm |
| Offset Length | 25.0mm |
| Panel Thickness | 0.02 - 0.21" |
| Panel Thickness | 0.6 - 5.5mm |
| Panel Thickness max. (imperial) | 0.21" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 5.08mm |
| for Hole ⌀ (FH) | 7.6 - 8.4 mm |
| for Panel Thickness min - max | 0.6 - 5.5 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
