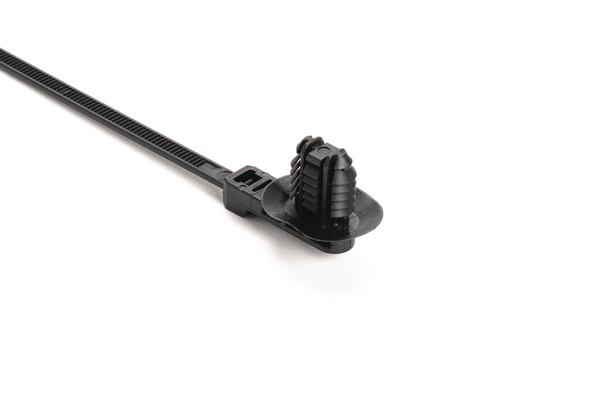

Fixing tie for hole (oval), ⌀2.0-50.0mm, black, 3000pcs.
Art.-No. 157-00437
| T50ROSFTOVALIL15A-PA66HIRHSUV-BK
|
Copied
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Versions for oval holes feature anti-twist protection
Show more
줄이기
More products in this product group:
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50ROSFTOVALIL15A-PA66HIRHSUV-BK |
| Pack Content | 3000pcs. |
| Package Content packed in | pack |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50ROSFTOVALIL15A |
| Typical Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| UV-Stabilised | Yes |
|
|
|
| Bundle ⌀ max. | 50.0mm |
| Bundle ⌀ min. | 2.0mm |
| Fixing Hole Shape | Oval |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 222.3mm |
| Offset Length | 15.0mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 17.63mm |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 4031026702339 |
| Packaging 1 - Height (m) | 0.21m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04914m³ |
| Packaging 1 - Weight (kg) | 8.610001kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 9.22kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 45000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 162.9kg |
| Packaging 4 - Width (m) | 0.8m |
