Fixing tie for stud, outside serrated, ⌀1.0-35.0mm, black, 500pcs.
Art.-No. 157-00210
| T50SOSSBS5E-PA66HS-BK
|
Copied
- Cable tie head always situated in defined position
- Easy to install without the need for a tool

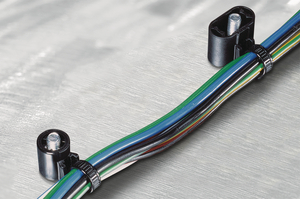

- Bundles are routed very close to stud
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SOSSBS5E-PA66HS-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | T50SOSSBS5E for cable routing alongside the stud |
| Product Group | 1-piece fixing ties for weld studs |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50SOSSBS5E |
| Variant | Outside Serrated |
|
|
|
| GTIN-13 / EAN | 4031026491271 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.4kg |
| Packaging 3 - Height (m) | 0.22m |
| Packaging 3 - Length (m) | 0.57m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0495m³ |
| Packaging 3 - Weight (kg) | 3.22kg |
| Packaging 3 - Width (m) | 0.395m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 85.4kg |
| Packaging 4 - Width (m) | 0.8m |
