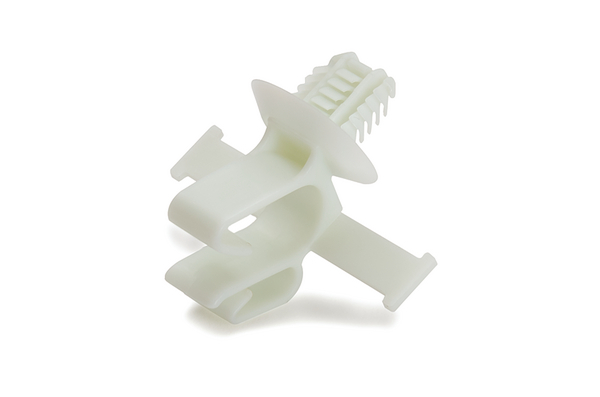

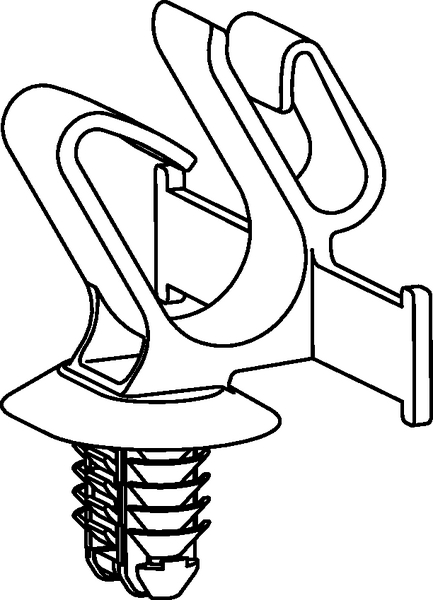

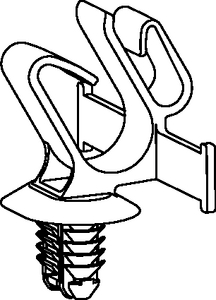

Bundling clip for hole (oval), L=44.0mm, natural, 3000pcs.
Art.-No. 133-02473
| BCFTOVAL3-PA66HIRHS-NA
|
Copied
- Effortless, tool-free installation – can be mounted easily by hand without the need for tools
- Flexible attachment options – compatible with both cable ties and adhesive tape
- Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
More products in this product group:
| Colour | Natural (NA) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | BCFTOVAL3-PA66HIRHS-NA |
| Pack Content | 3000pcs. |
| Package Content packed in | box |
| Product Family | for oval holes |
| Product Group | Bundling clips with fir tree |
| Type | BCFTOVAL3 |
| Typical Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| UV-Stabilised | Yes |
| Attach to ⌀ | 12.0, 5.0 |
| Bundling Bar Length | 1.73" |
| Bundling Bar Length | 44.0mm |
| Disc ⌀ | 5.0 mm; 12.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 18.3mm |
| Height (H2) | 10.0mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 10.0mm |
| Length (L2) | 17.0mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| Tolerance +/- | ±0.4% |
| Width (W) | 1.5mm |
| for Hole ⌀ (FH) | 6.5 x 12.5 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| CE Certification | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| GTIN-13 / EAN | 4031026566177 |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 6.900001kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 8.99kg |
| Packaging 3 - Width (m) | 0.2921m |
