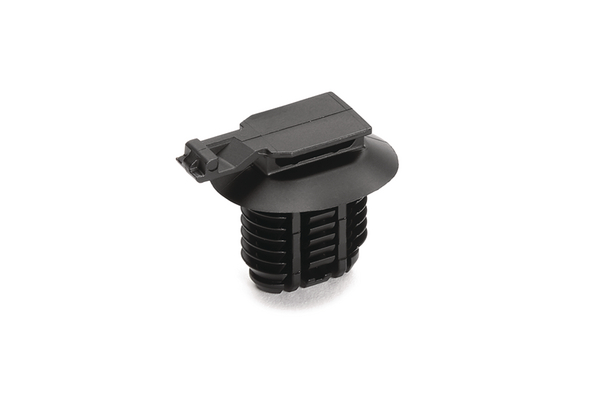

Connector clip, EWCAP-005-11, black, 3000pcs.
Art.-No. 151-01296
| CC18-PA66HIRHSUV-BK
|
Copied
- Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
- Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
- A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
| Application | The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 155N |
| PART DESCRIPTION | CC18-PA66HIRHSUV-BK |
| Pack Content | 3000pcs. |
| Package Content packed in | pack |
| Type | CC18 |
| UV-Stabilised | Yes |
| Fixing Hole Shape | Oval |
| Height (H) | 23.57mm |
| Height (H2) | 16.50mm |
| Length (L) | 30.29mm |
| Panel Thickness | 0.02 - 0.37" |
| Panel Thickness max. | 0.6 - 9.5mm |
| Panel Thickness max. (imperial) | 0.37" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 20.32mm |
| for Hole ⌀ (FH) | 9.0 x 17.0 mm |
| for Panel Thickness min - max | 0.6 - 9.5 mm |
