Cable clip for hole (round), T=0.6 - 6.0mm, ⌀6.5 mm, Dmin=15.5mm, Dmax=15.5mm
Art.-No. 151-01310
| DUALFT6DOCK-PA66HIRHSUV-BK
|
Copied

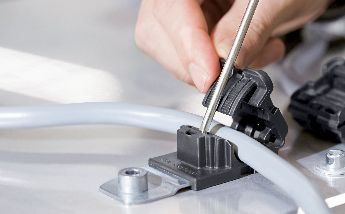

- For parallel routing of tubes and pipes
- Easy to install
- Post installation of tubes and pipes possible
- Defined offset between the bundles
More products in this product group:
| Application | Designed for the fast and easy parallel routing of two tubes or pipes. Both can be installed by hand. The fixing element inside assures a firm grip even with smaller diameters. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | DUALFT6DOCK-PA66HIRHSUV-BK |
| Pack Content | 2000pcs. |
| Package Content packed in | pack |
| Product Family | for multiparallel routing |
| Product Group | Fixing elements for tubes and harnesses |
| Type | DUALFT6DOCK |
| UV-Stabilised | Yes |
| Attach to ⌀ | 15.5 |
| Bundle ⌀ max. | 15.5mm |
| Bundle ⌀ min. | 15.5mm |
| Height (H) | 34.63mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.0mm |
| Length (L) | 51.8mm |
| Nominal ⌀ | 15.5mm |
| Panel Thickness | 0.02 - 0.24" |
| Panel Thickness | 0.6 - 6.0mm |
| Panel Thickness max. (imperial) | 0.24" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 16.66mm |
| for Hole ⌀ (FH) | 6.5 mm |
| for Panel Thickness min - max | 0.6 - 6 mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
