11/06/2025

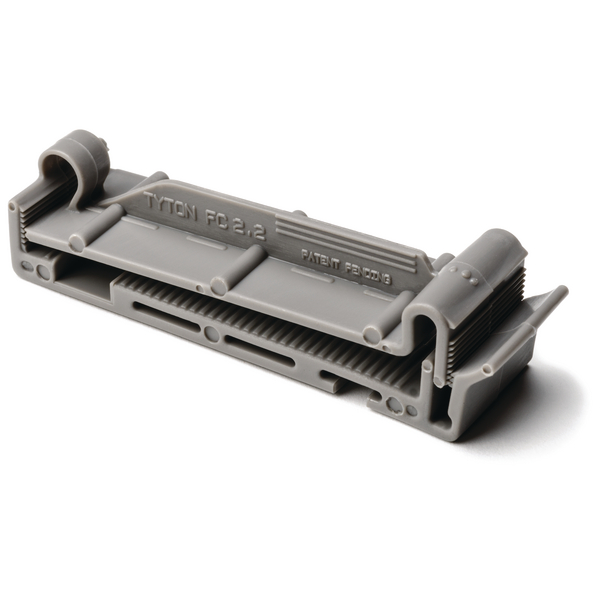

Cable clip for hole (round), ⌀4.0 mm
Art.-No. 154-00015 | FC2.2-PA66-GY |

Clamp height is adjustable to accomodate the exact height of the ribbon.

Designed to retain flat ribbon cables - ideal for use in computer equipment, gaming machines and domestic appliances
Can be quickly and easily installed using these one-piece fixing clips
Offer the benefits of being easily releasable and re-usable for addition or replacement of cables

Base Data

Colour	Grey (GY)
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	FC2.2-PA66-GY
Pack Content	50pcs.
Package Content packed in	pack
Type	FC2.2
UV-Stabilised	No

Product Dimensions


For Cable Width Max (imperial)	2.2"
For Cable Width max.	55.9mm
Height (H)	12.95mm
Length (L)	38.1mm
Width (W)	63.5mm
Width (W2)	0.75"
Width (W2)	19.05mm
for Hole ⌀ (FH)	4.0 mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V2
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026715131
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Width (m)	0.3175m

More Information

UNSPSC Key

39121702
