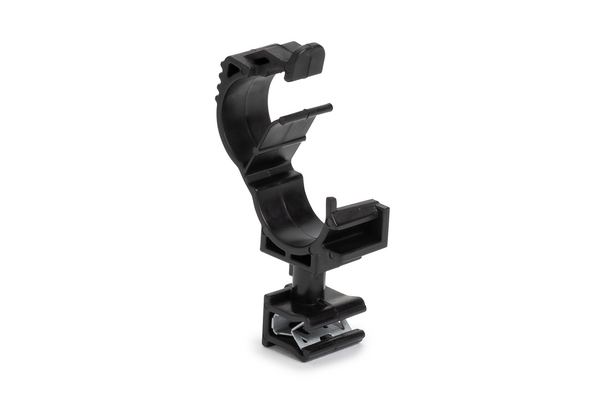

Solar Locking Clamps
Art.-No. 151-03903
| LOC10-14XECMOCF90-PA66HIRHSUV/PA66HIRHSUVR5-BK
|
Copied
- Robust locking mechanism keeps the bundle secure, but can be opened by hand for maintenance
- Edge clip allows for easy installation without tools

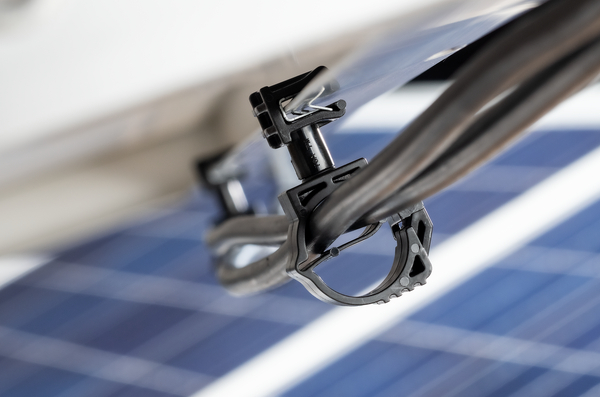

- For solar applications, including panel frames and racking edges
More products in this product group:
| Application | The solar locking clamp with edge clip combines two of our most successful products - the edge clip and the solar locking clamp - into one, offering a universal design that fits a variety of edges without the need for cable ties. Specifically fabricated for solar applications, the solar locking clamp can attach to a wide range of solar panel and racking edges. Its locking mechanism dynamically accommodates various bundle sizes. Manufactured from impact-modified polyamide 6.6, the clamp offers enhanced flexibility, heat resistance, and UV stabilisation, ensuring years of dependable performance. It is easy to install and operate single-handedly, with no tools required saving both time and labour. |
| Colour | Black (BK) |
| Fixation Method | Edge Clip |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5) |
| PART DESCRIPTION | LOC10-14XECMOCF90-PA66HIRHSUV/PA66HIRHSUVR5-BK |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | LOC clamps with edge clip |
| Product Group | Solar Locking Clamps |
| Type | LOC10-14XECMOCF90 |
| UV-Stabilised | Yes |
| Bundle ⌀ max. | 14.0mm |
| Bundle ⌀ min. | 10.0mm |
| Bundle Diameter Nom. (ND) | 10.0 - 14.0 mm |
| Depth (D) | 14.0mm |

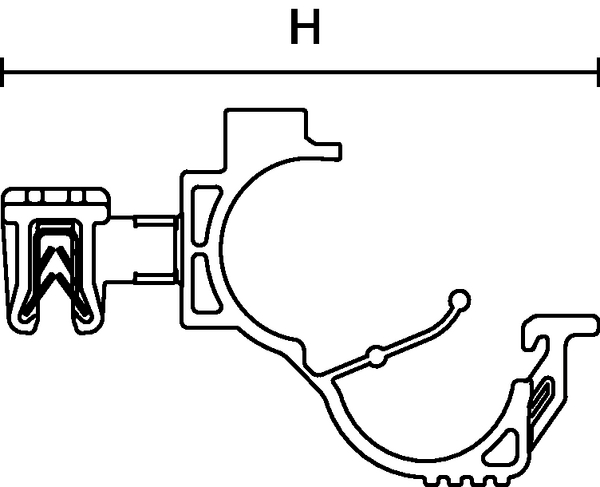

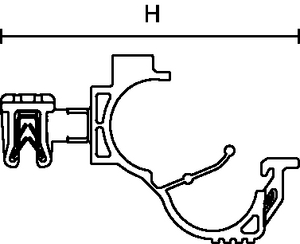

| Height (H) | 57.23mm |
| Height (H2) | 40.61mm |

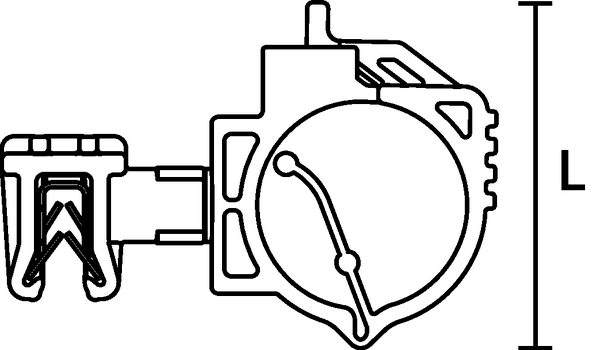

| Length (L) | 28.43mm |
| Panel Thickness | 0.03 - 0.11" |
| Panel Thickness max. | 1.0 - 3.0mm |
| Panel Thickness max. (imperial) | 0.11" |
| Panel Thickness min. (imperial) | 0.03" |
| Width (W) | 12.0mm |
| for Panel Thickness min - max | 1 - 3 mm |
다운로드
| GTIN-13 / EAN | 4031026708980 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.20479m |
| Packaging 3 - Length (m) | 0.5159375m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0332m³ |
| Packaging 3 - Weight (kg) | 5.08kg |
| Packaging 3 - Width (m) | 0.314325m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
