Fixing tie for hole (round), ⌀6.0-40.0mm, black, 100pcs.
Art.-No. 157-00076
| CM200FT9J-PA66HSW-BK
|
Copied
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Suitable for use within threaded holes
- Reusable - Less waste and less pollution of the environment
Request your individual offer now
Request quote
More products in this product group:

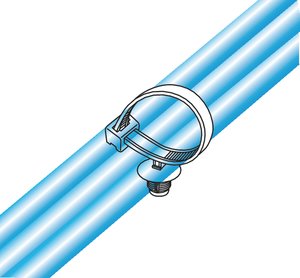

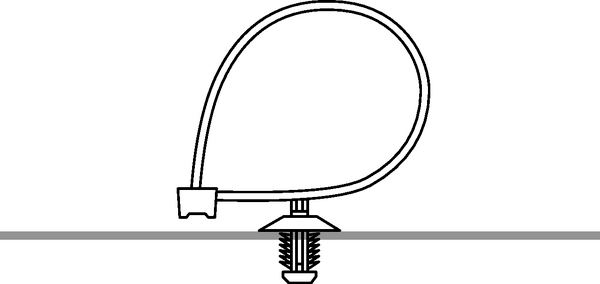

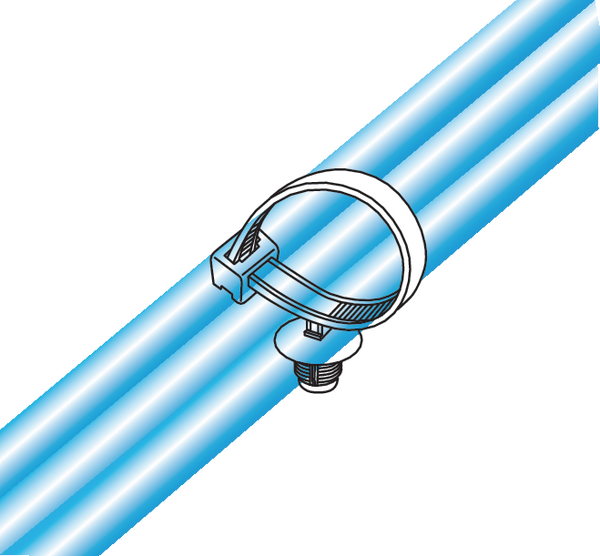

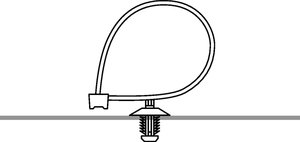

| Application | This fir tree design is ideal for use in thick panels and threaded, blind holes. The additional disc avoids the intrusion of dust and dirt. |
| Colour | Black (BK) |
| Description | For fixing cable bundles on panels |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
| Min.Tensile Strength | 300N |
| PART DESCRIPTION | CM200FT9J-PA66HSW-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | for round holes, releasable |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | Yes |
| Tie Closure | plastic pawl |
| Type | CM200FT9J |
| UV-Stabilised | Yes |
| Bundle ⌀ max. | 40.0mm |
| Bundle ⌀ min. | 6.0mm |
| Disc ⌀ | 20mm |
| Length (L) | 200mm |
| Panel Thickness | 0.09 " – 0.24" |
| Panel Thickness max. | 2.3 – 6.0mm |
| Panel Thickness max. (imperial) | 0.24" |
| Panel Thickness min. (imperial) | 0.09" |
| Thickness (T) | 1.3mm |
| Width (W) | 8.0mm |
| for Hole ⌀ (FH) | 8.8 - 9.2 mm |
| for Panel Thickness min - max | 2.3 - 6 mm |
| for Panel Thickness min - max | 0.1 - 0.2 " |
Download
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Min. Extraction Force (N) | 250N |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
|
|
|
| GTIN-13 / EAN | 4944387957693 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0043875m³ |
| Packaging 1 - Weight (kg) | 0.344401kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 3 - Height (m) | 0.3m |
| Packaging 3 - Length (m) | 0.455m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.043m³ |
| Packaging 3 - Weight (kg) | 3.824kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.044m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 15000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.002m³ |
| Packaging 4 - Weight (kg) | 78.36kg |
| Packaging 4 - Width (m) | 0.8m |
