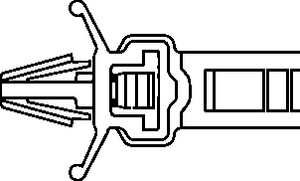

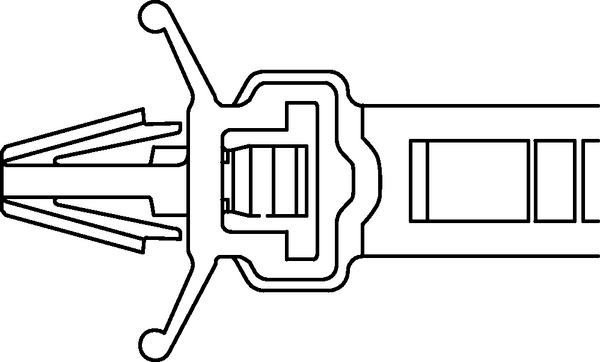

Fixing tie for hole (round), Ø5.0-32.0mm, natural, 100pcs.
Art.-No. 115-00087 | RT50SSF5.4-PA66-NA Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Show more

Request your individual offer now

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION RT50SSF5.4-PA66-NA
Product Family for round holes, releasable
Product Group 1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No) Yes
Bundle Diameter max (metric) 32.0mm
Bundle ∅ min. 5.0mm
for Hole ∅ (FH) 5.2 - 5.6 mm
for Panel Thickness min - max 0.5 - 1.6 mm
Height (H2) 10mm
Length (L) 150mm
Length (L2) 18.20mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 7.6mm
Width (W2) 8.0mm
Width (W3) 19.0mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64962
GTIN-13 / EAN 4944387949933
UNSPSC Key 39121703
