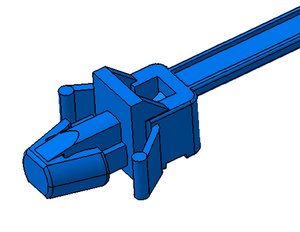

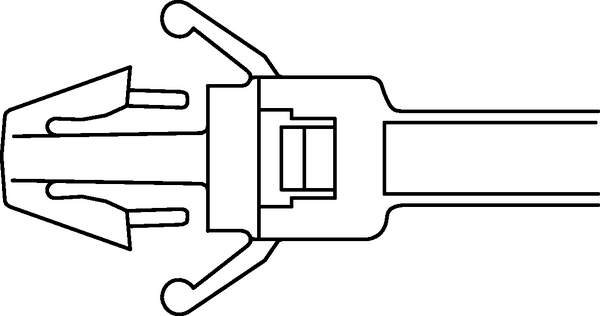

Fixing tie for hole (round), Ø1.0-27.0mm, natural, 100pcs.
Art.-No. 115-00067 | RT30SSF5-PA66-NA Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Show more

Request your individual offer now

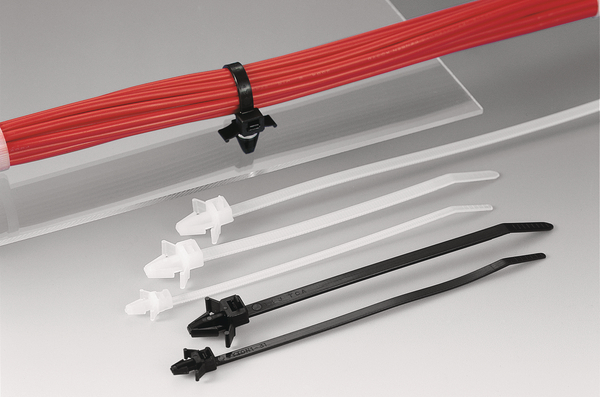

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in bag

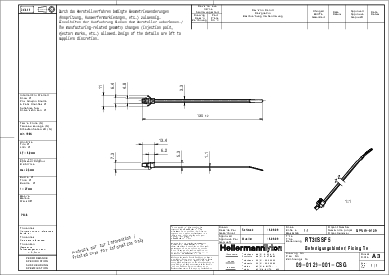

PART DESCRIPTION RT30SSF5-PA66-NA
Product Family for round holes, releasable
Product Group 1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No) Yes

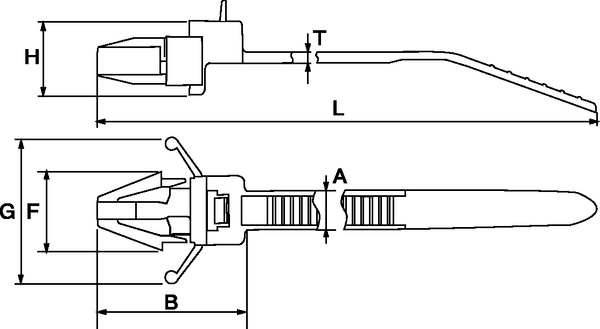

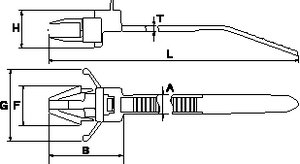

Bundle Diameter max (metric) 27.0mm
Bundle ∅ min. 1.0mm
for Hole ∅ (FH) 4.7 - 5.0 mm
for Panel Thickness min - max 0.5 - 2.3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H2) 7.3mm
Length (L) 130.0mm
Length (L2) 13.40mm
Min.Tensile Strength 196N
Panel Thickness max. (imperial) 0.09"
Panel Thickness min. (imperial) 0.02"
Thickness (T) 1.3mm
Width (W) 3.3mm
Width (W2) 0.25"
Width (W2) 6.4mm
Width (W3) 11.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64962
GTIN-13 / EAN 4944387926804
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.175m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00089
Packaging 1 - Weight (kg) 0.078301kg
Packaging 1 - Width (m) 0.145m

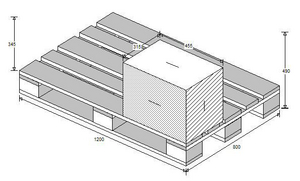

Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0494
Packaging 3 - Weight (kg) 8.27kg
Packaging 3 - Width (m) 0.315m

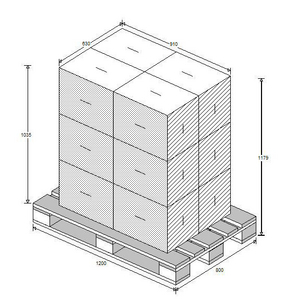

Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 150000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 145.05kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
