19/04/2024

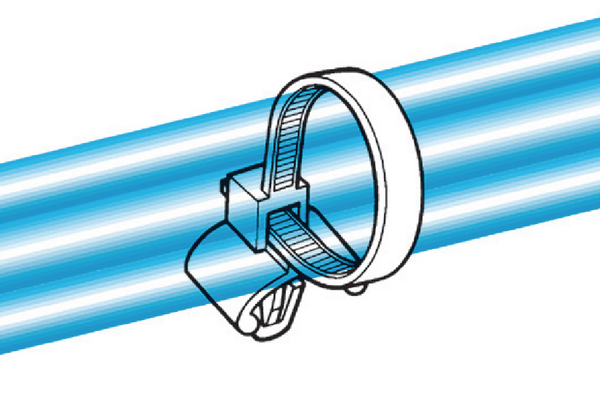

Fixing tie for hole (round), Ø1.0-27.0mm, natural, 100pcs.
Art.-No. 115-01900 | RT18RSF-PA66-NA Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Show more

Request your individual offer now

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION RT18RSF-PA66-NA
Product Family for round holes, releasable
Product Group 1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No) Yes
Bundle Diameter max (metric) 27.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 11.0mm
for Hole ∅ (FH) 3.8 - 4.2 mm
for Panel Thickness min - max 0.6 - 2.3 mm
Height (H2) 5.5mm
Length (L) 132mm
Length (L2) 14.80mm
Min.Tensile Strength 80N
Thickness (T) 1.1mm
Width (W) 3.0mm
Width (W2) 5.5mm
Width (W3) 11.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64962
GTIN-13 / EAN 4944387210002
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.175m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00071
Packaging 1 - Weight (kg) 0.065001kg
Packaging 1 - Width (m) 0.135m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0494
Packaging 3 - Weight (kg) 6.94kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 150000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 125.1kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
