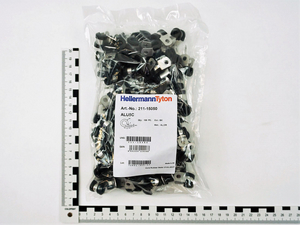

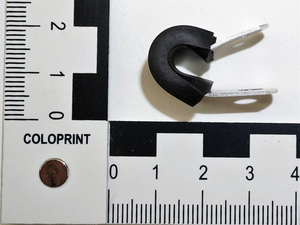

P-clamp closed, Ø5.2 mm, Dmax=4.8mm, black, 100pcs.
Art.-No. 211-15050 | ALU5C-AL/CR-BK Details

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Request your individual offer now

Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
Colour Black (BK)
Fixation Method screw-hole
Material Aluminium alloy (AL), Chloroprene Rubber (CR)
Pack Content 100pcs.
Package Content packed in pcs.
PART DESCRIPTION ALU5C-AL/CR-BK
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Variant Closed
Bundle Diameter max (metric) 4.8mm
Fixing Hole Centres (F2) 12.6mm
Fixing Hole Centres (F3) 5.5mm
for Hole ∅ (FH) 5.2 mm
Nominal ∅ 4.8mm
Radius (R) 1.6mm
Wall (WT) 3.7mm
Wall (WT2) 0.8mm
Width (W) 16.3mm
Width (W2) 12.7mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Nato number 5340-12-303-4991
Operating Temperature -20 °C to +80 °C
Specifications
UV-Stabilised (Yes/No) Yes
GTIN-13 / EAN 4031026129068
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.002
Packaging 1 - Weight (kg) 0.303kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.133m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 900
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0105
Packaging 3 - Weight (kg) 2.972kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.208m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.16
Packaging 4 - Weight (kg) 258.616kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
