Aluminium P-Clamps : ALU9C

Aluminium P-Clip with Chloroprene Insert 11.1 mm, Article number: 211-15090

Features

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Certifications & Approvals

Application

Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.

Alu-P-Clamp with / without chloroprene insert is suitable for following markets and industries

Colour Black (BK)
Fixation Method screw-hole
Pack Content 100pcs.
Package Quantity per pcs.
PART DESCRIPTION ALU9C-AL/CR-BK
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Variant Closed

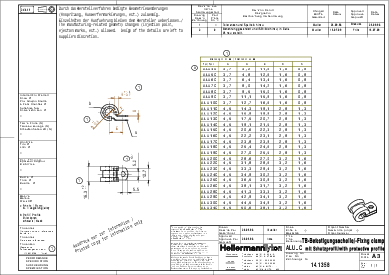

Bundle ∅ max. 11.1mm
Fixing Hole Centres (F2) 15.8mm
Fixing Hole Centres (F3) 5.5mm
for Hole ∅ (FH) 5.2 mm
Nominal ∅ 11.1mm
Radius (R) 1.6mm
Wall (WT) 3.7mm
Wall (WT2) 0.8mm
Width (W) 16.3mm
Width (W2) 12.7mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Aluminium alloy (AL), Chloroprene Rubber (CR)
Material AL, CR
Operating Temperature - °C -20 °C to +80 °C
Specifications
UV-Resistant (Yes/No) Yes
EAN / GTIN 4031026129112
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0024
Packaging 1 - Weight (kg) 0.4999kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.133m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0105
Packaging 3 - Weight (kg) 2.7445kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 240.48kg
Packaging 4 - Width (m) 0.8m
Weight 0.4897kg
UNSPSC Key 39121702
