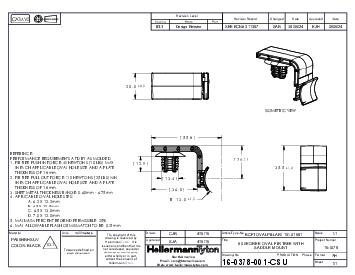

Bundling clip for hole (round), L=66.0mm, SO=32.0mm, black, 1000pcs.
Art.-No. 151-01681
| BCFTOVALAPILLAR-PA66HIRHSUV-BK
|
Copied
- Effortless, tool-free installation – can be mounted easily by hand without the need for tools
- Flexible attachment options – compatible with both cable ties and adhesive tape
- Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
Stock item
Request your individual offer now
Request quote
More products in this product group:
| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | BCFTOVALAPILLAR-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | pack |
| Product Family | for oval holes |
| Product Group | Bundling clips with fir tree |
| Type | BCFTOVALAPILLAR |
| UV-Stabilised | Yes |
| Bundling Bar Length | 66.0mm |
| Fixing Hole Shape | Oval |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 45.7mm |
| Length (L2) | 45.7mm |
| Offset Length | 32.0mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
