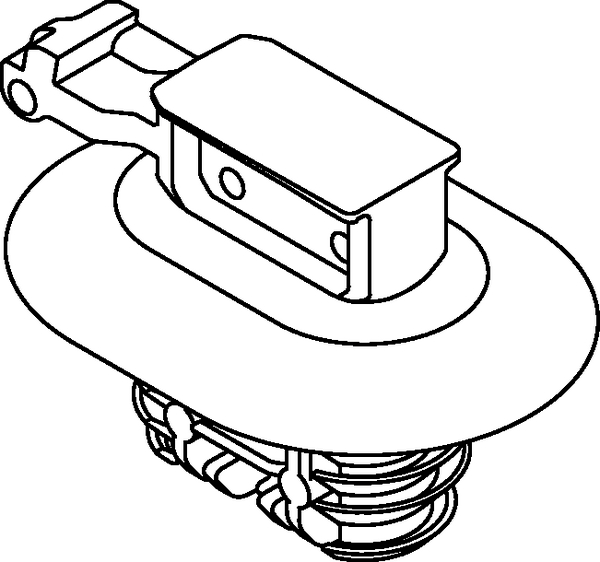

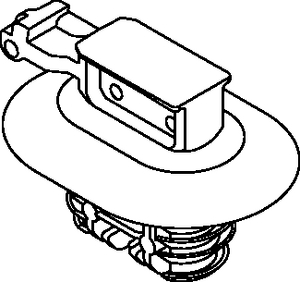

Connector clip for hole (round), black, 2000pcs.
Art.-No. 151-01184 | CC13-PA66HIRHS-BK |

Connector Clips are available for many different connector types and fixing varieties.

This product is not available anymore.

Please contact our sales team.

Connector easily installed by simply pushing into place
Connection can be released (non-destructive)
One fir tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dirt and water gaining access
For twist protection: Variants with additional stick or for oval holes

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Connector Clips for Oval Holes >

Base Data

Application	The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CC13-PA66HIRHS-BK
Pack Content	2000pcs.
Package Content packed in	carton
Product Family	With FirTree
Product Group	Connector Clips for Oval Holes
Type	CC13

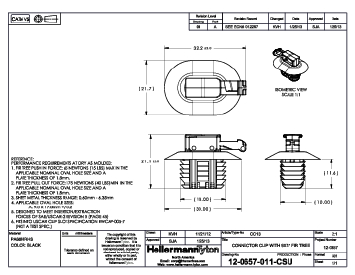

Product Dimensions

Height (H)	21.1mm
Height (H2)	11.60mm
Length (L)	32.2mm
Panel Thickness max.	0.6 - 6.35mm
Panel Thickness max. (imperial)	0.25"
Panel Thickness min. (imperial)	0.02"
Width (W)	21.59mm
for Hole ⌀ (FH)	9.0 x 17.0 mm
for Panel Thickness min - max	0.5 - 6.4 mm

Downloads

Specifications

Operating Temperature	-40 °C to +110 °C
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Packaging 1 - Weight (kg)	1.13398kg
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

UNSPSC Key

39121702
