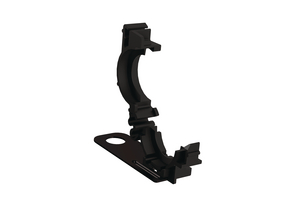

Corrugated tube clip for screw fixation/with pipe/tube holder, nom⌀19.0mm, black, 50pcs.
Art.-No. 151-02982 | CDC19S40.5M6-PA66HIRHS-BK |

Copied
Living hinge allows placement and positioning of convoluted tubing before locking in place.

    • Can be easily assembled to convoluted tubing and reliably remain in position.
    • Internal rib prevents movement or rattling.
    • Multiple configurations to mount to a variety of surfaces.
    • Releaseable to allow for maintenance.
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CDC19S40.5M6-PA66HIRHS-BK
    Pack Content 50pcs.
    Package Content packed in pack
    Type CDC19S40.5M6
    UV-Stabilised No
    Variant Clamps
    ⌀ (D2) 27.4mm
    ⌀ D 0.81"
    ⌀ D2 1.08"
    Attach to ⌀ 19
    Bundle ⌀ max. 19.0mm
    Diameter (D) 20.6mm
    Height (H) 66.8mm
    Inner Diameter D (Imperial) 1.08"
    Inside ⌀ (ID) 27.4mm
    Length (L) 70.3mm
    Nominal ⌀ 0.75"
    Nominal ⌀ 19.0mm
    Outside ⌀ (OD2) 20.6mm
    Outside ⌀ (OD2) 0.81"
    Width (W) 23mm
    for Hole ⌀ (FH) 6.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026715278
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.352424999999999m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.34925m
    UNSPSC Key 31162906
