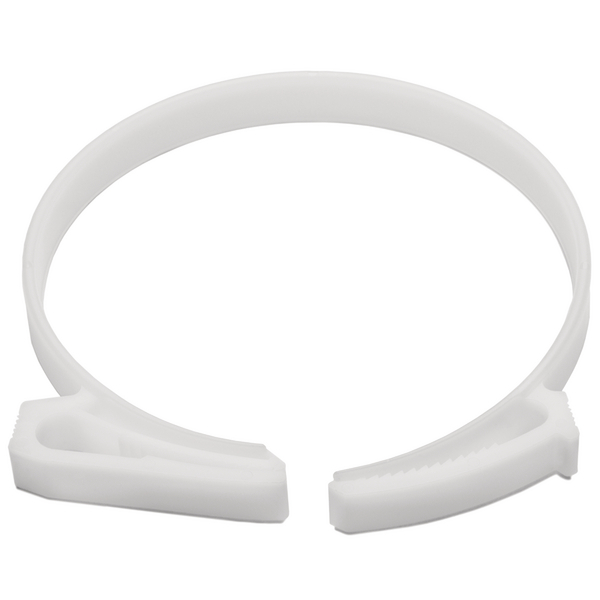

Plastic hose clamp, Ø80.5-89mm, white, 100pcs.
Art.-No. 190-00231 | SNP80-POM-WH |  Details

Designed for quick, ratcheted installation and can be released and reused.

    This product is not available anymore.
    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour White (WH)
    Fixation Method Plug-in mounting
    Material Polyacetal (POM)
    Pack Content 100pcs.
    Package Content packed in bag
    PART DESCRIPTION SNP80-POM-WH
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Variant Closed
    Bundle Diameter max (metric) 89mm
    Bundle ∅ min. 80.5mm
    Wall (WT) 2.5mm
    Wall (WT) .1"
    Width (W) max. 78.66mm
    Width (W) max. 3.097"
    Width (W) min. 47.45mm
    Width (W) min. 1.868"
    Width (W2) 0.441"
    Width (W2) 11.2mm
    ∅ D max. 88.32mm
    ∅ D max. 3.477"
    ∅ D min. 3.126"
    ∅ D min. 79.4mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026419763
    Packaging 3 - Height (m) 0.21589999999999998m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121702
