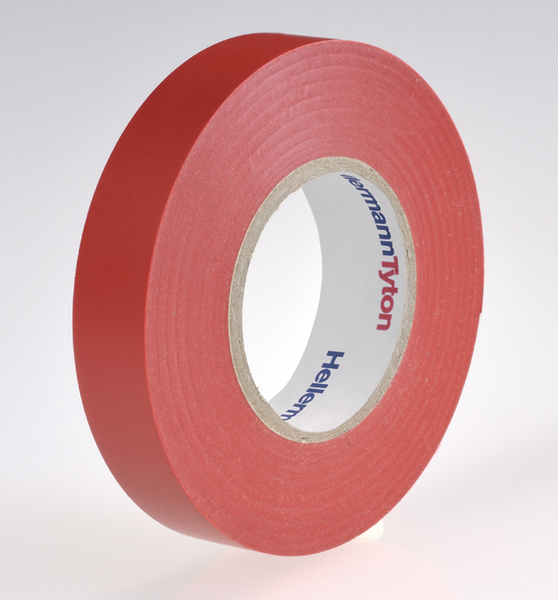

Electrical tape, L=25m, W=15mm, T=0.15mm, red
Art.-No. 710-00112
| HTAPE-FLEX15-15x25-PVC-RD
|
Copied
This product is not available anymore.
- Vinyl electrical tape in many different colours
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
- Highly flexible with outstanding adhesion performance
- Harnessing of wires and cables
- Suitable for mechanical and electrical applications up to 1 kV
- VDE approved according to IEC 60454-3-1-6/F-PVCP/90
- Flame retardant according to IEC 60454-2
Show more
Show less
Request quote
More products in this product group:
Vinyl Electrical Tapes –
Commercial Grade Vinyl Electrical Tape
| Application |
Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Red (RD) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX15-15x25-PVC-RD |
| Pack Content | 1m |
| Package Content packed in | reel |
| Product Family | HelaTape Flex 15 |
| Product Group |
Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape |
| Type | HTAPE-FLEX15-15x25 |
| Adhesion to Backing | 2.0N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 28N/10 mm |
| CAS Number | 117-81-7 |
| Critical Substance | Diethylhexyl phtalate DEHP concentration > 0.1 % |
| Dielectric Strength | 45kV/mm |
| EC Number | 204-211-0 |
| ELV compliant (Article 4 - 2) | Yes |
| Elongation at break (min.) | 200% |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | VDE |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 19.5N/mm² |
| GTIN-13 / EAN | 4031026401751 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.08m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.000096m³ |
| Packaging 1 - Weight (kg) | 0.078kg |
| Packaging 1 - Width (m) | 0.08m |
| Packaging 2 - Height (m) | 0.083m |
| Packaging 2 - Length (m) | 0.156m |
| Packaging 2 - Qty | 10 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0011m³ |
| Packaging 2 - Weight (kg) | 0.78kg |
| Packaging 2 - Width (m) | 0.082m |
| Packaging 3 - Height (m) | 0.18m |
| Packaging 3 - Length (m) | 0.425m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0138m³ |
| Packaging 3 - Weight (kg) | 8.3kg |
| Packaging 3 - Width (m) | 0.18m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
