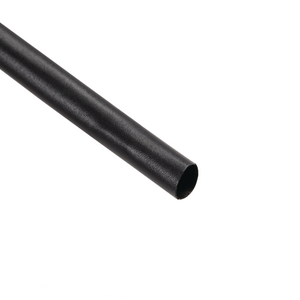

Heat Shrinkable Tubing 3.5:1 Thick Wall Adhesive Lined length 1m 45/12 black
Art.-No. 321-50450 | TREDUX-HA47-45/12-PO-X-BK Details

  • Thick wall polyolefin adhesive-lined tubing
  • 1 m shrink tubing lengths delivered in handy display carton
  • All tubes can be sold in single 1 meter lengths or entire box

Request your individual offer now

Application The toughness and weatherability make TREDUX thick wall tubing suitable for exposed applications and underground cable joints.
Application Tool CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION TREDUX-HA47-45/12-PO-X-BK
Pack Content 4pcs.
Package Content packed in pcs.
Printable No
Product Family TREDUX HA47 - thick wall adhesive lined
Product Group Heat shrinkable tubing up to 4:1 - 1 m lengths
Shrink Ratio up to 4:1
Type TREDUX-HA47-45/12
Variant Thick-Wall
Voltage range Low Voltage
With inner glue (Yes/No) Yes
Length (L) 1.0m
Longitudinal Change After Shrinkage -10% max.
Nominal ∅ 1.75"
Nominal ∅ 45mm
Recov. ∅ d max. 0.47"
Recov. ∅ d max. 12.0mm
Supplied ∅ D min. 1.77"
Supplied ∅ D min. 45.0mm
Wall (WT) .16"
Wall (WT) 4.1mm
Wire Size Range (mm²) 18.6-38.4mm²
Adhesive Hot melt adhesive
Dielectric Strength 20kV/mm
ELV compliant (Article 4 - 2) YES
Elongation at break 400%(ASTM D 2671)
Halogen-free Yes
Hazardous Goods No
Min. Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Volume Resistance 10¹⁴ Ω cm
GTIN-13 / EAN 4031026239880
Packaging 1 - Height (m) 0.094m
Packaging 1 - Length (m) 1.068m
Packaging 1 - Qty 4
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00944
Packaging 1 - Weight (kg) 1.332001kg
Packaging 1 - Width (m) 0.094m
Packaging 3 - Height (m) 0.132m
Packaging 3 - Length (m) 1.081m
Packaging 3 - Qty 8
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.034
Packaging 3 - Weight (kg) 4.264kg
Packaging 3 - Width (m) 0.238m
Packaging 4 - Height (m) 1.201m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.153
Packaging 4 - Weight (kg) 97.752kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121723
