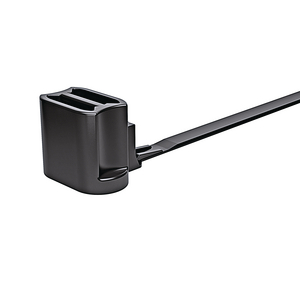

Fixing tie for stud, Ø1.5-35.0mm, black, 500pcs.
Art.-Nr. 157-00090 | HT160SB6HE-PA66HS-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION HT160SB6HE-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type HT160SB6HE
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 1.35mm
    Height (H2) 17.3mm
    Length (L) 167.0mm
    Min.Tensile Strength 200N
    Stud ∅ M6
    Weight/Unit 0.002966kg
    Width (W) 5mm
    Width (W2) 21.2mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin KR
    Customs Number 39269097
    GTIN-13 / EAN 4031026403182
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500

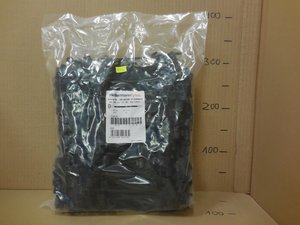

    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01125m³
    Packaging 1 - Weight (kg) 1.483kg
    Packaging 1 - Width (m) 0.25m
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0498m³
    Packaging 3 - Weight (kg) 6.552kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 138.936kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
