28/03/2024

Fixing tie for stud, inside serrated, Ø5.0-101.0mm, black, 50pcs.
Art.-Nr. 157-01300 | T120RSM-PA66HIRHSUV-BK Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Request your individual offer now

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured (T120RSM is for 1/4" bolts).
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Stud Mount
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 50pcs.
Package Content packed in bag

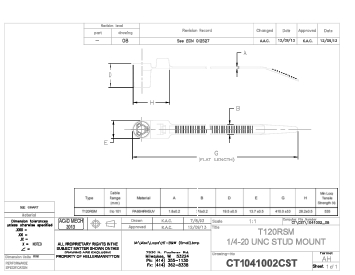

PART DESCRIPTION T120RSM-PA66HIRHSUV-BK
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl

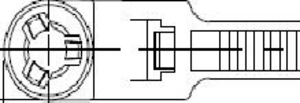

Variant Inside Serrated
Bundle Diameter max (metric) 101.0mm
Bundle ∅ 5.0-101.0mm
Bundle ∅ min. 5.0mm
Height (H) 19.50mm
Length (L) 405.0mm
Min.Tensile Strength 535N
Stud ∅ 6.3 mm
Stud ∅ 0.25"
Thickness (T) 1.8mm
Width (W) 7.6mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin US
GTIN-13 / EAN 4031026422114
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 8.9kg
Packaging 3 - Width (m) 0.2873375m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
