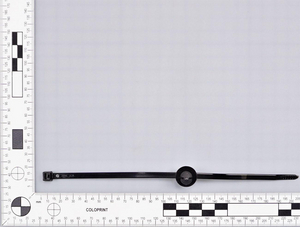

Fixing tie for hole (round), inside serrated, ⌀5.0-45.0mm, black, 500pcs.
Art.-Nr. 111-85880
| T50RFT8-PA66HS-BK
|
Copied
- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Anti rotation (Yes / No) | NO |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Foot Part | Polyamide 6.6, heat stabilised (PA66HS) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 225N |
| No. of sides for tie attachment | 2 |
| PART DESCRIPTION | T50RFT8-PA66HS-BK |
| Package Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | Fir tree parts FT8 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-Piece Fixing Tie with Fir Tree and Disc 200x4.6 black |
| Tie Closure | plastic pawl |
| Type | T50RFT8 |
| Variant | Inside Serrated |
| Weight/Unit | 0.002038kg |
|
|
| Bundle ⌀ | 5.0-45.0mm |
| Bundle ⌀ max. | 45.0mm |
| Bundle ⌀ min. | 5.0mm |
| Disc ⌀ | 16.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 1.2mm |
| Height (H2) | 11.5mm |
| Length (L) | 202mm |
| Length (L2) | 12.0mm |
| Length of Fir Tree | 11.5mm |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Width (W2) | 9.0mm |
| for Hole ⌀ (FH) | 7.7 - 8.0 mm |
| for Panel Thickness min - max | 0.8 - 6 mm |
Download
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026205526 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.017775m³ |
| Packaging 1 - Weight (kg) | 1.048135kg |
| Packaging 1 - Width (m) | 0.395m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.20508kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 131.448kg |
| Packaging 4 - Width (m) | 0.8m |
