Fixing tie for hole (oval), ⌀1.6-30mm, natural, 500pcs.

Art.-Nr. 126-00430

| T60SOSSFT712S-E1-PA66HS-NA

|

1-piece fixing ties with arrowhead, with disc for oval holes.

Easy to install without the need for a tool
Arrowhead simply locks into place
Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
Cable tie head always situated in a defined position
Versions for oval holes feature anti-twist protection

Add to watchlist

Request quote

Downloads

More products in this product group:

1-piece fixing ties with arrowhead, with disc

Base Data

Application	With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Colour	Natural (NA)
Fixation Method	Arrowhead for oval holes
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS)
Min.Tensile Strength	300N
PART DESCRIPTION	T60SOSSFT712S-E1-PA66HS-NA
Package Content	500pcs.
Package Content packed in	bag
Product Family	for oval holes
Product Group	1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T60SOSSFT712S-E1

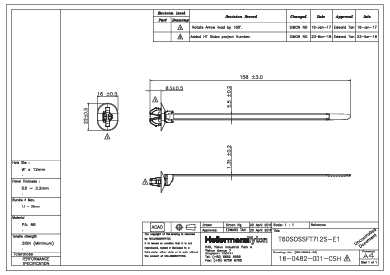

Product Dimensions

Bundle ⌀	1.6-30mm
Bundle ⌀ max.	30mm
Bundle ⌀ min.	1.6mm
Disc ⌀	16.0 x 22.0mm
Fixing Hole Shape	Oval
Length (L)	158mm
Thickness (T)	1.3mm
Width (W)	5.5mm
for Hole ⌀ (FH)	7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 3.2 mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026666143

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
