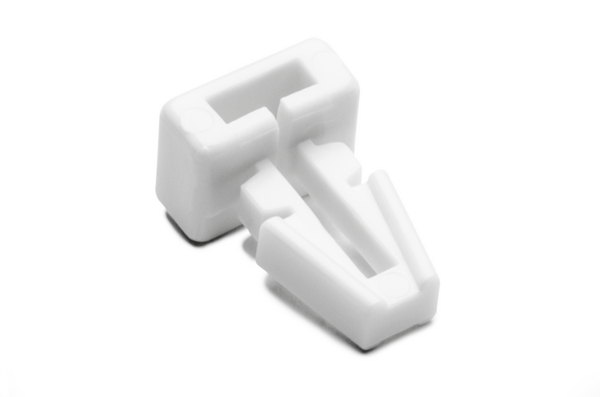

Cable tie mount for hole (round), Wmax=5.0mm, T=3.4mm, ⌀6.3 mm, white, 1000pcs.
Art.-Nr. 151-00328 | TM1SF-PA66-WH |

Copied
TM1SF for secure fixing of cables into pre-drilled or pre-punched holes.
TM1SF Fixing Base
TM1SF Fixing Base

    • Ideal mount for space-saving applications with restricted access
    • Arrowhead for very secure fixing
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Offering simple and easy methods of securing cables or pipes, these fixing accessories have many applications within a wide range of industries.
    Colour White (WH)
    Fixation Method arrowhead
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TM1SF-PA66-WH
    Package Content 1000pcs.
    Package Content packed in pack
    Product Family TM1SF for cable ties width up to 5.0 mm
    Product Group Cable Fixing Cradle
    Type TM1SF
    UV-Stabilised No
    Height (H) 15.6mm
    Height (H2) 4.60mm
    Length (L) 10.2mm
    Panel Thickness max. 3.4mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.0mm
    Width (W) 7.6mm
    for Hole ⌀ (FH) 6.3 mm
    for Panel Thickness min - max 3.4 - 3.4 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin MX
    GTIN-13 / EAN 4031026717968
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
