20/08/2025

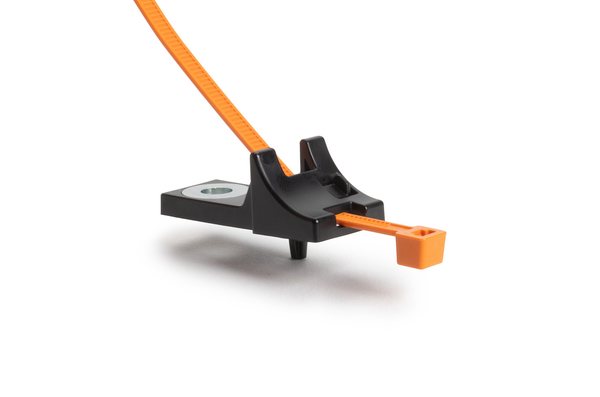

Fixing tie for screw fixation, inside serrated, ⌀5.0-105.0mm, orange/black, 1000pcs.
Art.-No. 156-04047 | T120RCPCM6-TSSET-PA66HIRHS-OG/BK |

Copied

    • Excellent strength and high installation reliability
    Downloads
    Application Screw mount for screw fixation
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 535N
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T120RCPCM6-TSSET-PA66HIRHS-OG/BK
    Pack Content 1000pcs.
    Package Content packed in pack
    Product Family HDM-Series
    Product Group 2-Piece Fixing Ties for Heavy Duty Applications, for Screws
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RCPCM6-TSSET
    Variant Inside Serrated
    Bundle ⌀ max. 105.0mm
    Bundle ⌀ min. 5.0mm
    Height (H) 23.5mm
    Length (L) 42.6mm
    Strap Width max. (G) 0.3"
    Stud ⌀ 0.24"
    Stud ⌀ 6.0 mm
    Width (W) 20.0mm
    for Hole ⌀ (FH) M6
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026665337
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 40000
    UNSPSC Key 39121703
