Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 : T120R(E)

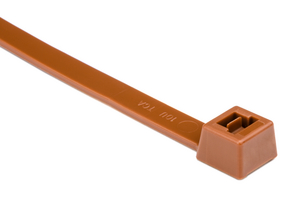

Cable Tie 380x7.6 PA46-transparant, Article number: 114-12179
Features
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
Certifications & Approvals
Application
T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
T-Series in PA46 is suitable for following markets and industries
-
Automotive Industry
-
Wind Energy Sector
-
Rail Transportation Sector
-
Electronics Industry
-
Aerospace Industry
-
Defence Industry
More products in this product group
Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 >| Application Tool | MK9P, MK9P w/ Upper air, MK21, EVO7, EVO7SP, European EVO9 tool, EVO9HT |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Content | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T120R(E)-PA46-NA |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 100mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 387mm |
| Min.Tensile Strength | 535N |
| Thickness (T) | 1.8mm |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyamide 4.6 (PA46) |
| Material | PA46 |
| Operating Temperature - °C | -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h) |
| Specifications |
|
| Specifications | IEC 60092 series |
|
|
|
| EAN / GTIN | 5022660021268 |
| Packaging 1 - Height (m) | 0.066m |
| Packaging 1 - Length (m) | 0.416m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00428m³ |
| Packaging 1 - Weight (kg) | 0.61kg |
| Packaging 1 - Width (m) | 0.156m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 13.002kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 281.04kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.61kg |
