28/03/2024

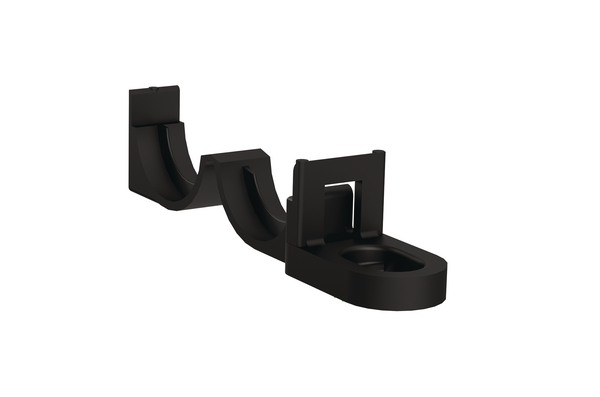

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 1600pcs.
Art.-No. 151-02685 | CDC12AM6-PP-BK 세부

Colour Black (BK)
Fixation Method screwable
Key product features for convoluted tubes or with rib
Material Polypropylene (PP)
Mounting Screw Type M6 Screw
Pack Content 1600pcs.
Package Content packed in carton
PART DESCRIPTION CDC12AM6-PP-BK
Variant Threaded
Attach to Ø 12mm
Bundle Diameter max (metric) 12.0mm
Diameter (D) 13.6mm
for Hole ∅ (FH) 6.35 mm
Height (H) 14.5mm
Length (L) 66.0mm
Offset Length 21.8mm
Stud ∅ M6
Stud ∅ M6"
Width (W) 12.7mm
∅ (D2) 17.8mm
∅ D 0.54"
∅ D2 0.7"
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free No
Hazardous Goods No
Operating Temperature -40 °C to +115 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
UNSPSC Key 39121702
