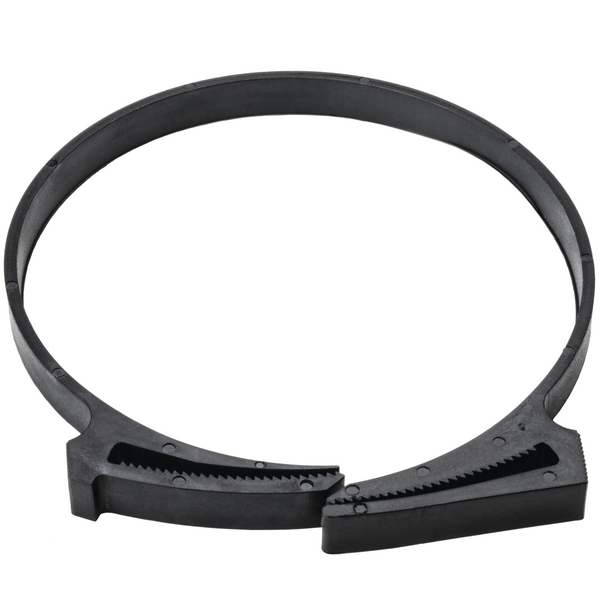

Plastic hose clamp, ⌀97.6-110.0mm, black, 100pcs.

Art.-No. 190-00051

| SNP100-PA66GF13-BK

|

Completely reusable - will not rust or corrode.

Designed for quick, ratcheted installation and can be released and reused.

This product is not available anymore.

Please contact our sales team.

Releasable and reusable plastic hose clamps
Self-locking
Releasable by giving a lateral movement to the 'head'
Installation by hand possible
Installation with processing tool for a secure tensioning
For higher operating temperatures: Glass Filled PA66

Downloads

More products in this product group:

Snapper hose clips for tubes and harnesses

Base Data

Application	Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Colour	Black (BK)
Fixation Method	Plug-in mounting
Material	Polyamide 6.6, glass-fibre reinforced (PA66GF13)
PART DESCRIPTION	SNP100-PA66GF13-BK
Pack Content	100pcs.
Package Content packed in	bag
Product Family	SNP-Series
Product Group	Snapper hose clips for tubes and harnesses
Type	SNP100
UV-Stabilised	No
Variant	Closed

Product Dimensions


⌀ D max.	110.01mm
⌀ D max.	4.331"
⌀ D min.	97.56mm
⌀ D min.	3.841"
Bundle ⌀ max.	110.0mm
Bundle ⌀ min.	97.6mm
Wall (WT)	0.1"
Wall (WT)	2.5mm
Width (W) max.	3.538"
Width (W) max.	89.87mm
Width (W) min.	52.63mm
Width (W) min.	2.072"
Width (W2)	0.39"
Width (W2)	9.91mm

Downloads

Technical drawing

다운로드

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026425894
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Width (m)	0.2921m

More Information

UNSPSC Key

39121702
