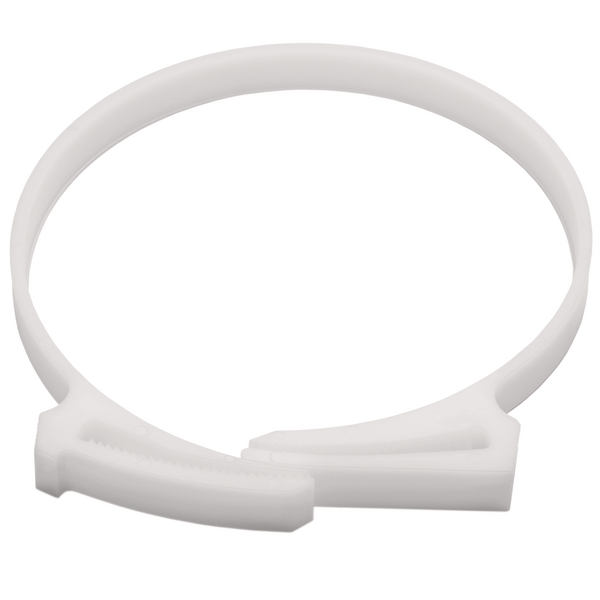

Plastic hose clamp, ⌀98.5-108mm, white, 25pcs.
Art.-No. 190-00052 | SNP100-POM-WH

Copied
Designed for quick, ratcheted installation and can be released and reused.
SNP - Snapper Hose Clip (front view)
SNP Clip (side view)
SNP - Snapper Hose Clips range.
Designed for quick, ratcheted installation and can be released and reused.

    This product is not available anymore.
    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour White (WH)
    Fixation Method Plug-in mounting
    Material Polyacetal (POM)
    PART DESCRIPTION SNP100-POM-WH
    Pack Content 25pcs.
    Package Content packed in bag
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP100
    UV-Stabilised No
    Variant Closed
    ⌀ D max. 101.8mm
    ⌀ D max. 4.244"
    ⌀ D min. 96.62mm
    ⌀ D min. 3.804"
    Bundle ⌀ max. 108mm
    Bundle ⌀ min. 98.5mm
    Wall (WT) .098"
    Wall (WT) 2.4mm
    Width (W) max. 3.516"
    Width (W) max. 89.31mm
    Width (W) min. 51.92mm
    Width (W) min. 2.044"
    Width (W2) 0.391"
    Width (W2) 9.93mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026415024
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121702
